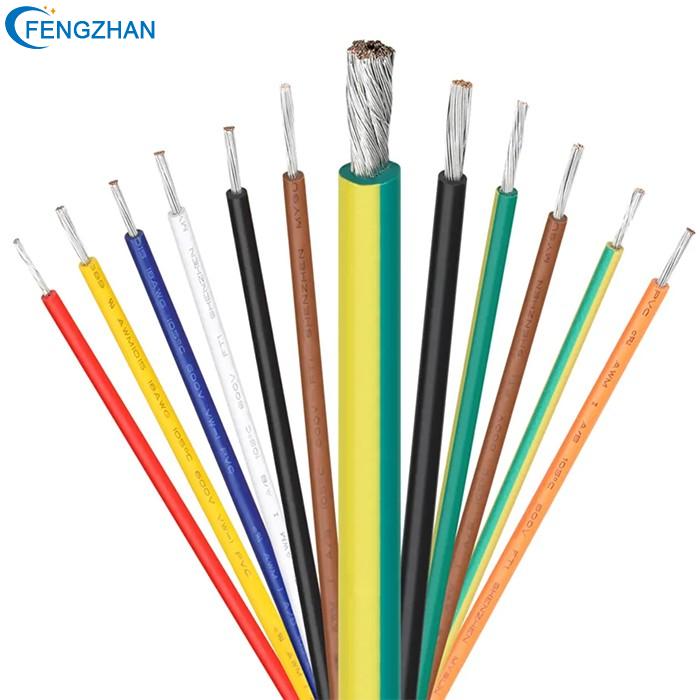

UL1015

UL1015 600V Wire Manufacturer

Cable structure:

Conductor: Oxygen-free bare copper wire or tinned copper wire is optional

Insulation: Heat-resistant and flame-retardant environmentally friendly PVC

Sheath: Heat-resistant, flame-retardant and environmentally friendly PVC, passed the VW-1 flame-retardant test standard

Color: Optional Compliant with UL758

Rated temperature: 105°C

Rated voltage: 600V

Spark test: 3000V

Combustion test: passed UL VW-1, CSA FT and JQA F-MARK flame retardant test

Get A Quote: lynn@fzwires.com

UL 1015 Electronic wire composition:

Including insulating layer and conductor, the outer skin is PVC insulating layer, the full name of PVC in Chinese is polyvinyl chloride; the internal conductor should be divided into bare copper and tinned copper according to normal standards.

Product Requirement

Must pass UL VW-1 and CSA Ft1 vertical flame test, insulation thickness is uniform

Applications

A. Single bare copper: It is generally used in fixed laying (such as pipe-through lines, T-shaped fluorescent lamp racks), it is more convenient in terms of line joints and equipment wiring, and multi-strand copper wires generally need to be crimped or welded.

B. Multi-strand wires: Copper wires are soft, and it is suitable for occasions where the wires need to follow the movement (such as motors, electric cabinets, distribution boxes, instruments, chargers, audio, medical equipment, toys, household appliances) and multiple wires When laying together (convenient for wire laying and wire bundle forming), multi-strand wires are mostly used for control lines compared to single-strand wires.

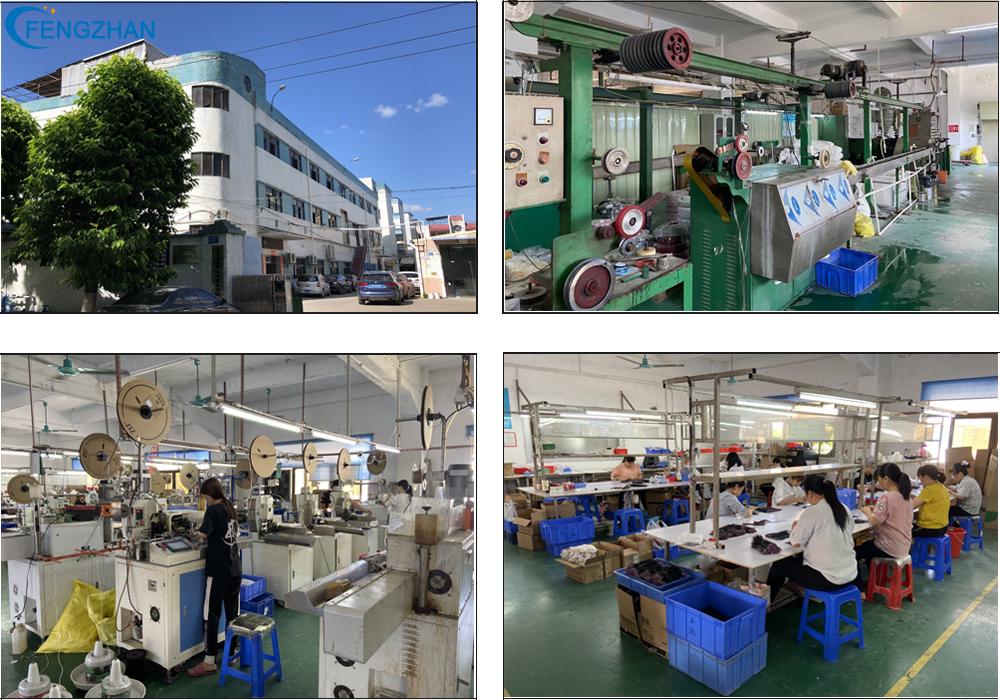

FENGZHAN Electronics specializes in manufacturing UL1015 wire with many years of production experience. MOQ is 3050 meters. Contact us now: lynn@fzwires.com
