UL1430

UL1430 300V XLPVC Wire Manufacturer

Product Details

Rated temperature resistance: 105℃

Rated stand voltage: 300v

Insulation material: XLPVC

Conductor material: tinned copper

Number of insulation layers: single layer

Flame retardant grade: VW-1 and FT1

Environmental protection: ROHS

Certification: UL

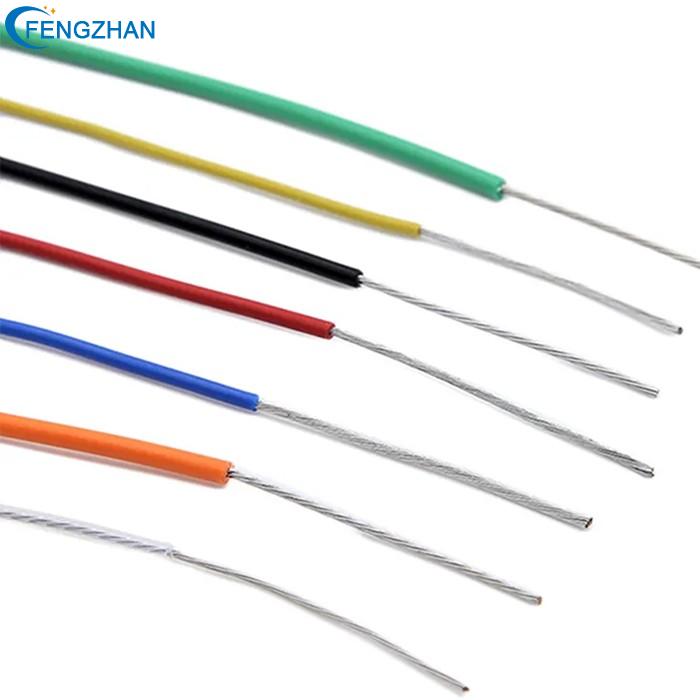

Color: red, black, yellow, green, blue, white, brown, gray, yellow green

Application: used for the inner connection wires of home appliance, headlamp, mechanical and electrical machine, temperature sensor etc.

Advantage

(1) It has excellent mechanical and physical properties, good resistance to environmental stress cracking, excellent wear resistance, and can withstand concentrated mechanical stress better than PVC and PE.

(2) Resistant to various chemical solvents and relatively stable in various corrosive media around.

(3) The outer diameter of UL1430 wire is smaller than the outer diameter of all PVC insulated wires with the same cross-section, which can reduce the diameter of the pipe used in the construction of the pipe, or wear more wires under the same pipe diameter, reducing the construction cost. Installation costs.

(4) Irradiated cross-linked polyolefin insulated wire products are much lighter than polyvinyl chloride insulated wire products, which are easier to install and transport, reduce labor intensity and reduce transportation costs.

UL1430 wire is widely used in Europe, America and Japan. Environmental protection, safety, long life, special heat resistance, chemical resistance, and radiation resistance are already indispensable in home decoration in Europe, America and other countries.
