  • UL1015 16AWG
  • UL1015 16AWG
UL1015 16AWGUL1015 16AWG

UL1015 16AWG

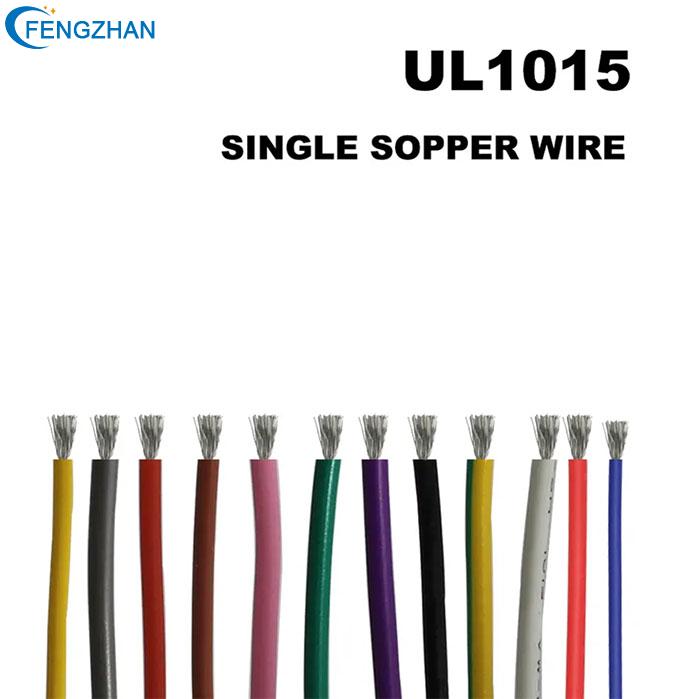

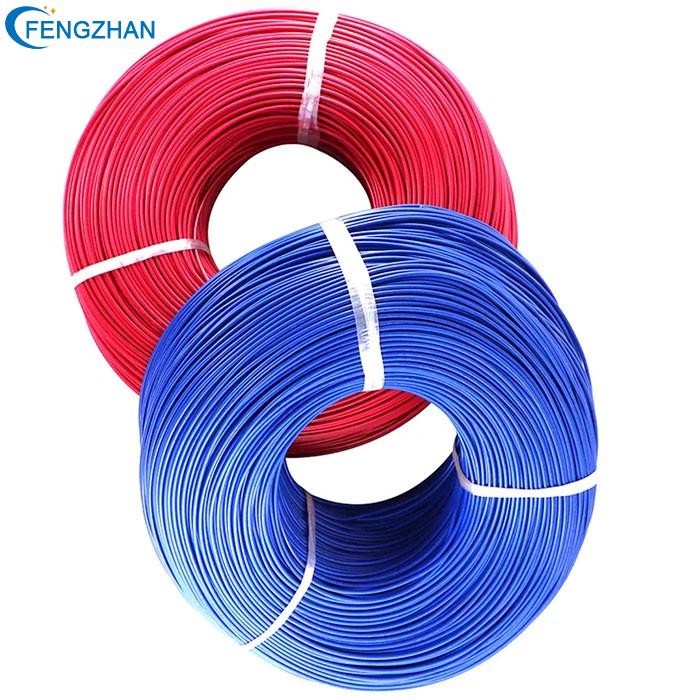

UL1015 16AWG is a 105-degree polyvinyl chloride insulated wire. 16AWG is an American wire gauge. The conductor structure generally uses tinned copper wire 26/0.254. The 600V mark has a withstand voltage of 600V. Use: internal wiring of electrical equipment. Generally used in rice cookers, computers, monitors, printers, instruments, lighting fixtures, etc.

EMAIL

UL1015 16AWG has electrical insulation good; good the dielectric properties.


Main of cables features

1. Rated voltage: 600V

2. Long-term allowable temperature of the cable:105°C

3. Conductor:Stranded Tinned copper wire

4.  Insulator material: PVC

5. Color: Black Blue Green Red Yellow White Or Customized Color

6. Feature: Super Soft, Waterproof, Halogenfree PVC Wire

UL1015 16AWG 1.jpg


Physical performance:

Excellent mechanical properties;

Excellent thermal stability;

Low temperature soft good performance;

Good flame retardancy;

Of high resistance to chemicals;

Chemistry stability is good;

Good resistance to high temperature of the engine fluid;

Excellent resistance to impact ability;


Processing properties:

Using the hot extrusion processing;

Can be twisted pair and multi-core;

Good processing properties Harness;

Harness processing process good compatibility;

According to UL standard design;

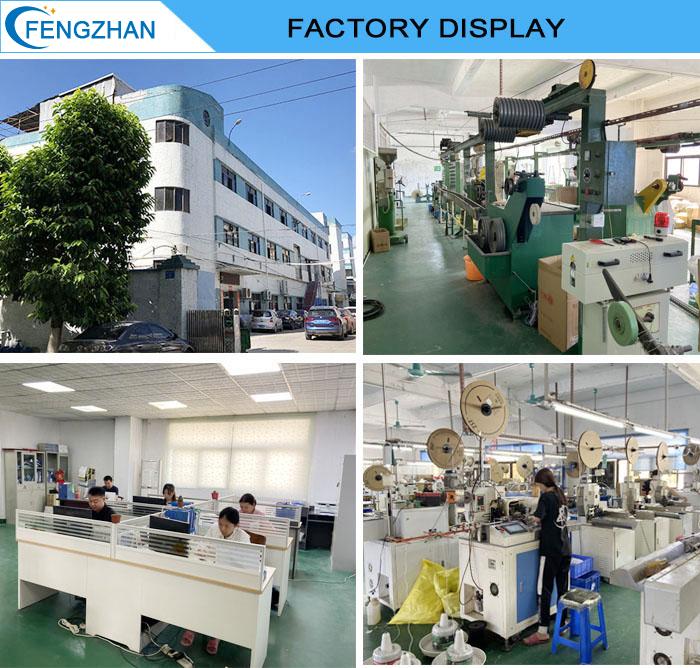

factory display-fengzhan.jpg

FAQ

Q: What are your payment terms?

A: Pay 30% T/T in advance, the balance before shipment.


Q: After-sales service:

A: All our products are quality manufactured and we will check the quality before delivering to you. If there is a problem with the quality .We will solve the problem for you at the first time, and will come up with the most suitable solution to solve the after-sales problem.


Q:What is the packing?

A: Normally pack in neutral brown cartons. Also your packing requirement is considered.


Q: Accept OEM?

A: Yes. Our company have rich experience in customizing wire and cable.
