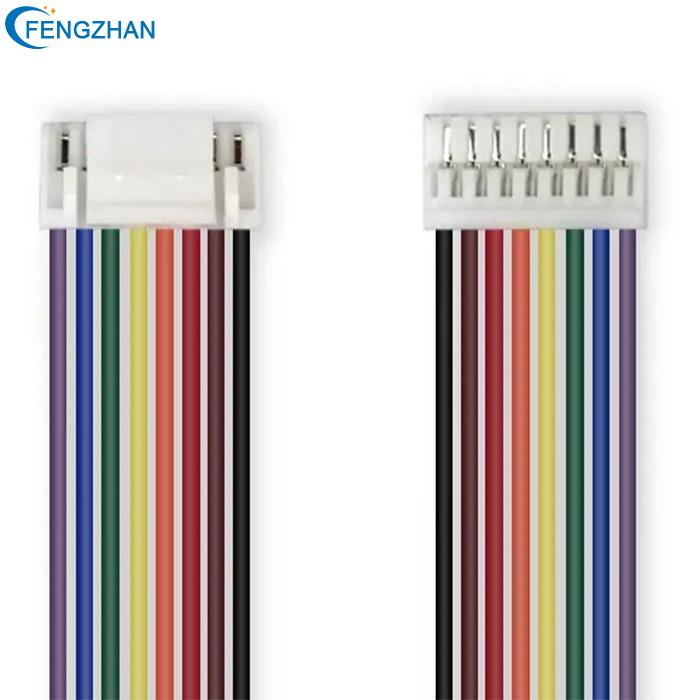

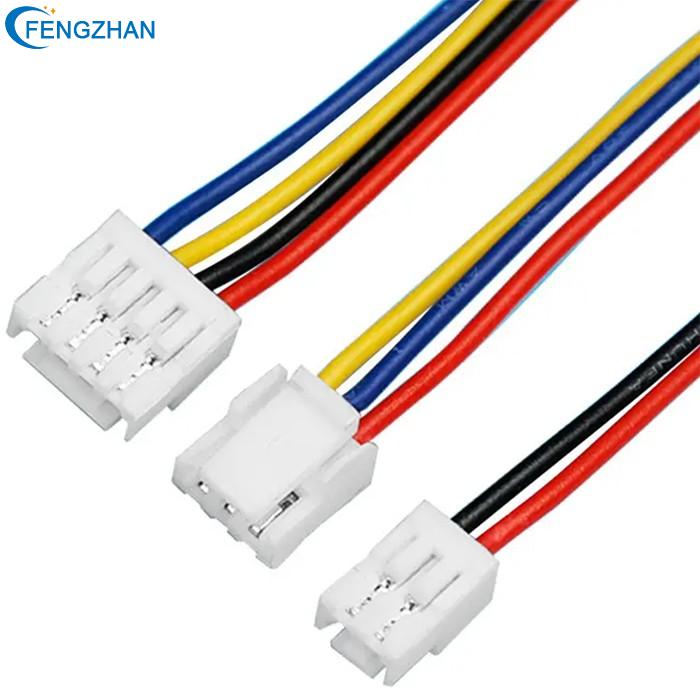

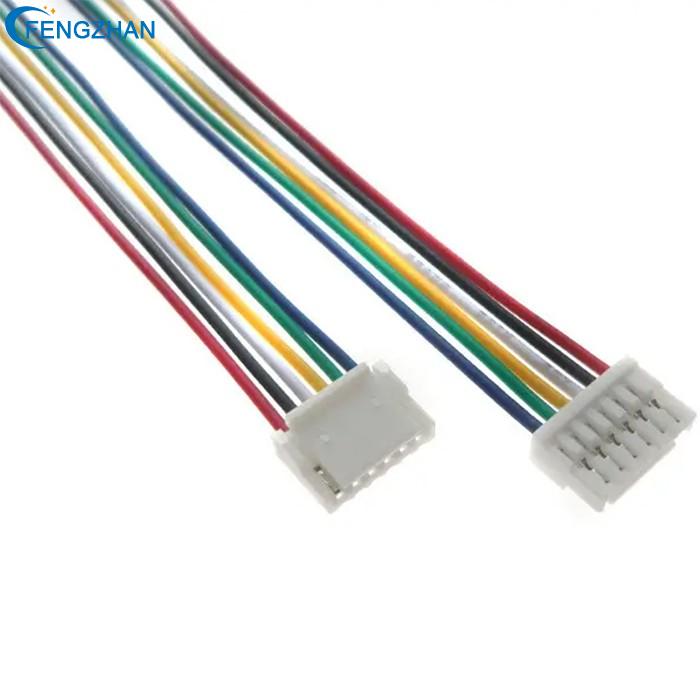

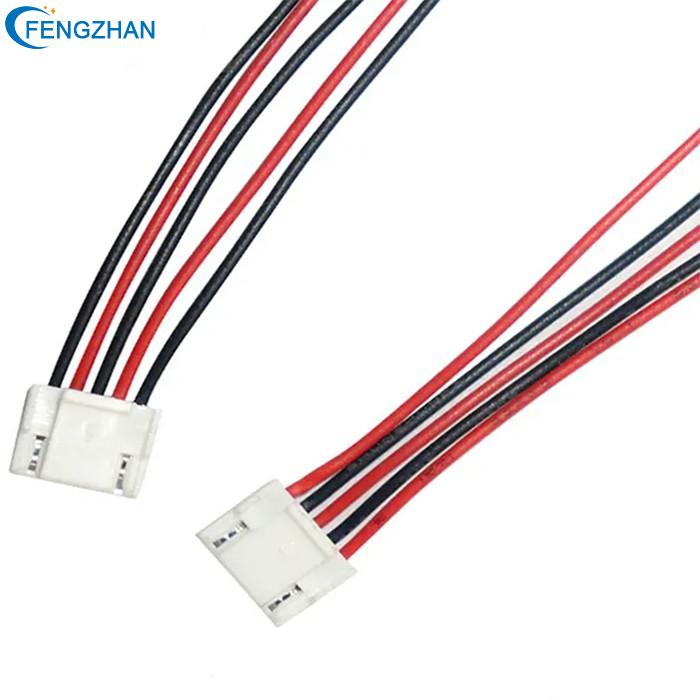

JST GH Cable

JST GH Cable uses JST brand connectors, and can also use domestic alternative connectors. All materials have passed environmental protection SGS, REACH, PAHS certification, do not contain polycyclic aromatic hydrocarbons, and are environmentally friendly. UL or non-standard wires can be customized according to customer requirements. The length and size can meet all customer needs.

EMAIL

Specifications

Pitch: 1.25mm

Poles: 2 to 15

Useable wire range: AWG30# to 26#

Current rating: 1.0A AC/DC

Voltage rating: 50V AC/DC

Temperature range: -25℃ to +85℃

Withstanding voltage: 500V AC/minute

Housing: PBT UL 94V-0

Terminal: Phosphor bronze

Features: high temperature resistance, acid, alkali, oil, flame retardant, moisture-proof, low frequency.

jst gh cable 3.jpg

Features

1. The terminal is made of phosphor copper, which has good electrical conductivity, and the plastic shell is made of PA66 nylon material, which has good plasticity. The core of the wire uses multiple tinned copper, so it has good flexibility.

2. JST GH Cable can withstand high temperature operation of 80 degrees, and the withstand voltage can reach 300V. It is an ideal wire for many equipment and device connection wires.

3. Due to the influence of terminal spacing, JST GH Cable is suitable for relatively thin wires, and the commonly used specifications are 30AWG-28AWG wires.
