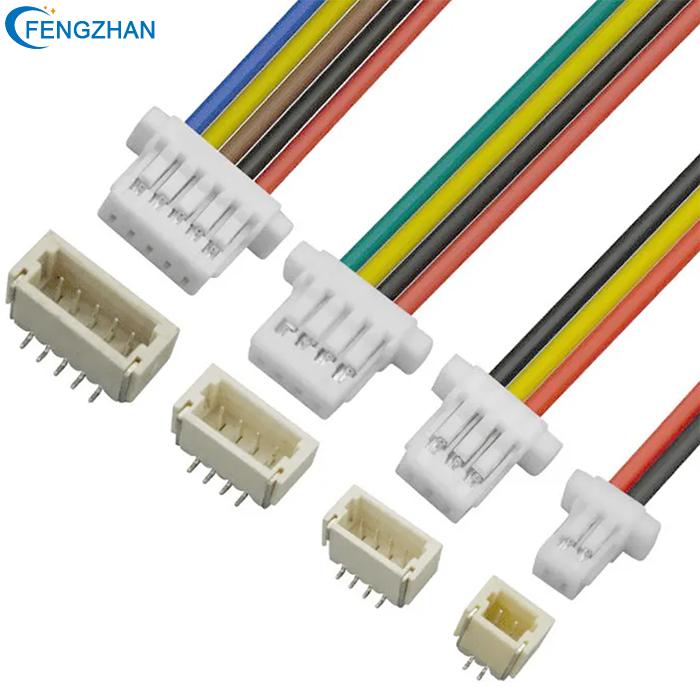

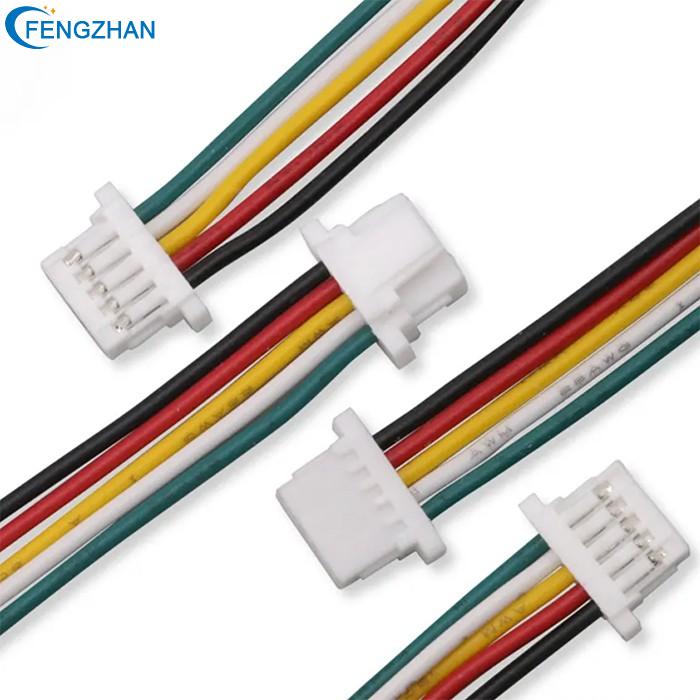

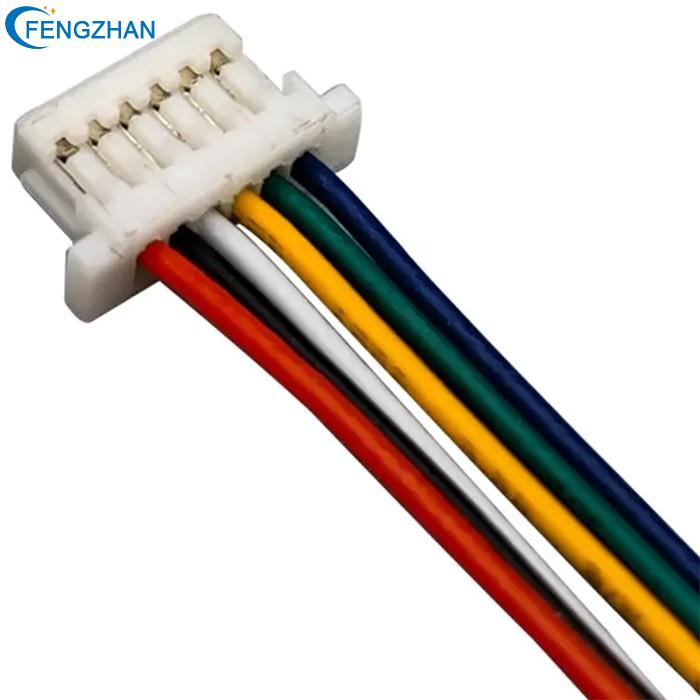

JST SH Cable

JST SH Cable is used in liquid crystal display/television, dvd movement, car audio, dvd/cd player, computer, medical equipment, communication products (various telephones), battery, lighting and other fields.

EMAIL

Product Details

Current rating: 1.0 A AC, DC (AWG #28)

Voltage rating: 50 V AC, DC

Temperature range: -25℃ to +85℃

(including temperature rise in applying electrical current)

Contact resistance: Initial value/ 20 mΩ max. After environmental tests/ 40 mΩmax.

Insulation resistance: 100 mΩ min

Withstanding voltage: 500 VAC/minute

Applicable wire: Conductor size/ AWG #32 to #28

Insulation: O.D./ 0.4 to 0.8 mm

jst sh cable 2.jpg

Material of JST SH Cable

1. Terminals and connectors can use JST foreign brand materials according to customer requirements, or use Chinese-made imitation connectors corresponding to foreign brands.

Materials used: environmentally friendly PA66, LCP, PBT, all terminals are made of phosphor bronze;

2. Wire can be used: PVC: UL1007, UL1571, UL1672, UL2464 UL2468, UL1015.

3. Wire color: all kinds of monochromatic wires (black, red, orange, yellow, green, blue, brown, purple, gray, white), injection strips (yellow for green, orange for black, white for black, red for black) Black, yellow note black, blue note black, etc.), specific colors can be customized according to customer needs!


The tail treatment of JST SH Cable has connectors on the same side, connectors on different sides, or one end with jst sh connector, and one end with tin on the tail. We can customize various jst sh cables according to customer requirements.
