PH Wiring Harness For Appliance

PH Wiring Harness Details

PH2.0 terminal line spacing: 2. 0mm
Number of lines: 2~16 (there are 2-16 holes)
Applicable wire gauge: AWG30#~22# (applicable to wire size 30~22)
Adapt to substrate thickness: 1. 6mm
Temperature range: -25℃~85℃
Rated voltage: 250V.Ac/Dc
Rated current: 2A
Contact resistance: ≤0.02Ω
Insulation resistance: ≥1000MΩ
Withstand voltage: 800V.Ac/1min
Hole seat: nylon (PA66)
Needle seat: nylon (PA66)
Terminal: Phosphor bronze

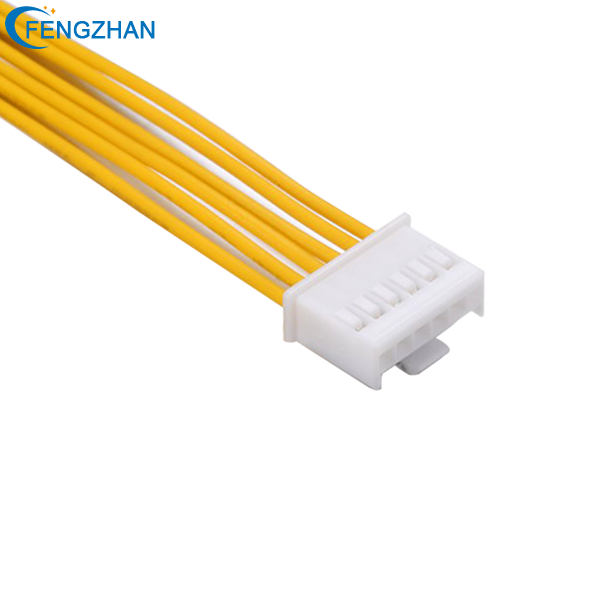

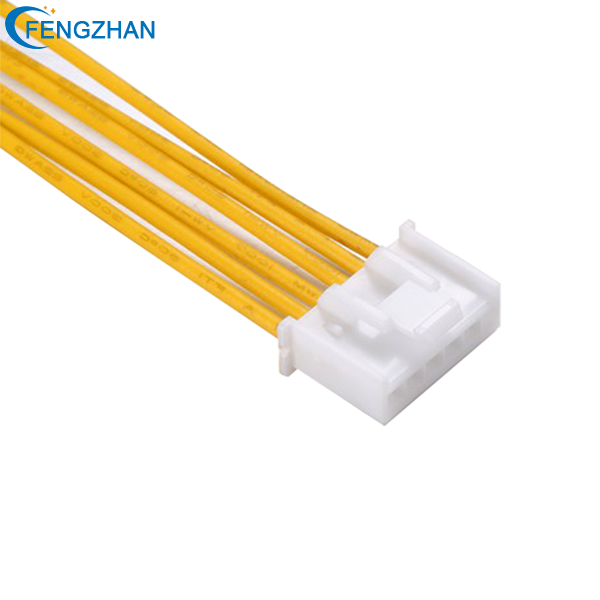

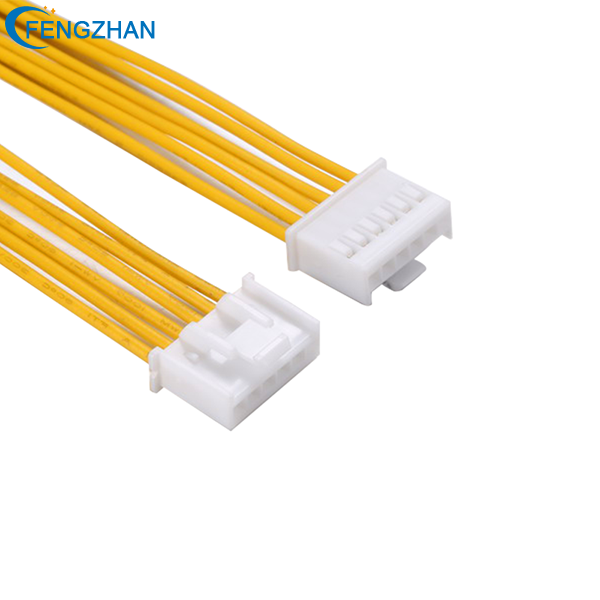

PH Wiring Harness Connector
Connectors are a component that our electronic engineering technicians often touch. Its function is very simple: it sets up a bridge of communication between the blocked or isolated circuits in the circuit, so that the current flows and the circuit realizes the predetermined function.

The size specifications required by each customer are different, and we can provide consultation on length, hole position, color, quantity, etc. Our online customer service, tailor-made for your products.
