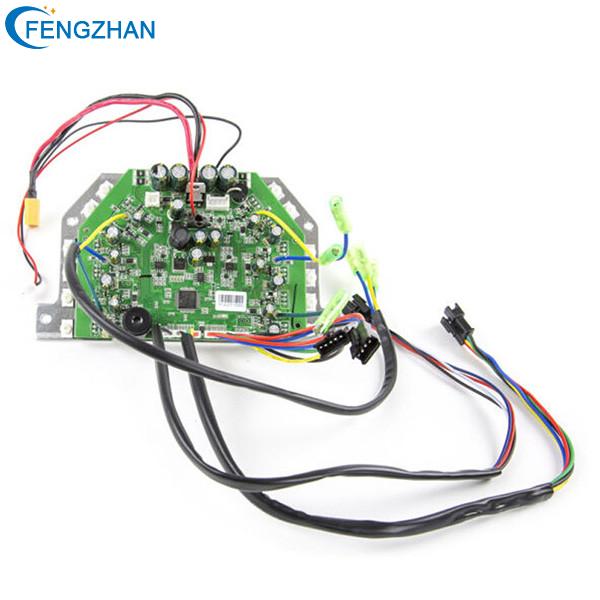

PCB Board Cable Harness PCBA Wires

PCB board wiring harness

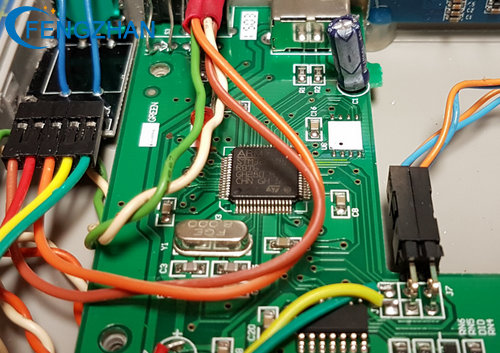

Design model of PCB board and its connecting Wire Harness. The whole is composed of wall socket (with tail jacket), cable tie, PCB board and wire-to-board connector. Wire harness assembly used in extremely narrow spaces.
The concept of PCB wiring harness is somewhat like a bus. However, the range of signal lines that can be included in the wiring harness is wider and not limited to one bus. The wiring harness can contain multiple buses and signal wires at the same time. We can bundle multiple signal wires into a wire harness through different logical relationships. For example, the serial port line is composed of TX and RX wires, and we use the wire harness tool to bundle them into a UART wire.

The PCB board wiring harness consists of 4 parts:
- Signal wiring harness
- Harness connector
- Harness entrance
- Harness fixed

We first place the harness connector, and then place the required entrance in the connector, and connect the network to the harness entrance. Finally, connect the port connection to the connector through the signal wire harness.

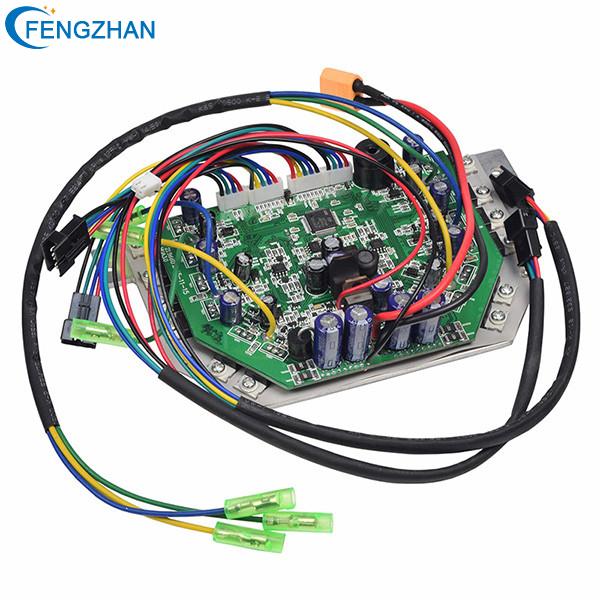

PCBA Board Wiring Harness

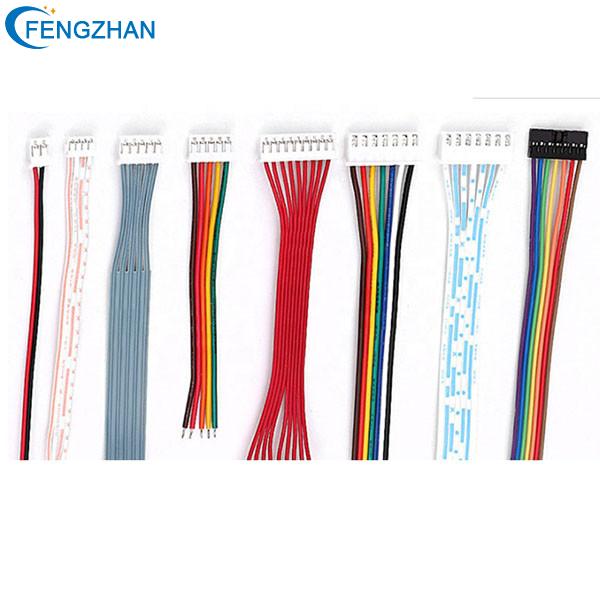

* PCB board wire: you can choose the appropriate wire according to the current, voltage, and the size of the PCB board hole. You can choose PVC wire, silicone wire, multi-core wire, Flat Ribbon Cable, etc.
* PCB board wire length: 30mm-1200mm or custom
* PCB board connector: DuPont, Molex, JST, SM, XH etc.
* PCB board wire color: red, black, blue, yellow, yellow, green, etc.

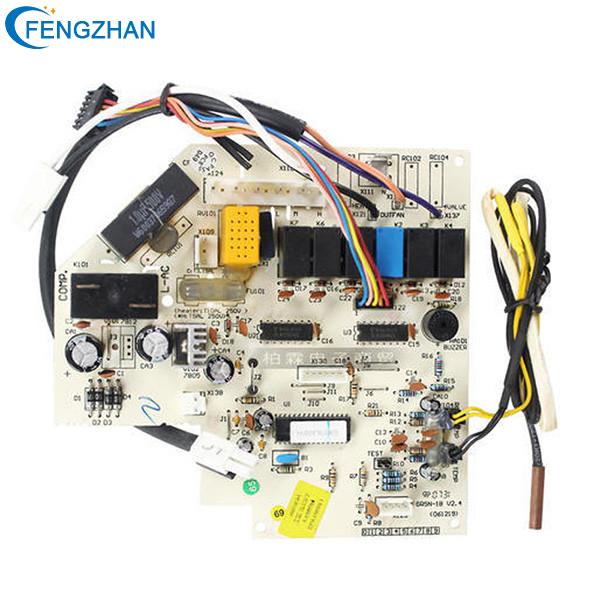

PCB Board Wiring Harness Application
- Medical equipment: heartbeat sensor, temperature measurement, electrocardiograph, electroencephalogram, etc.

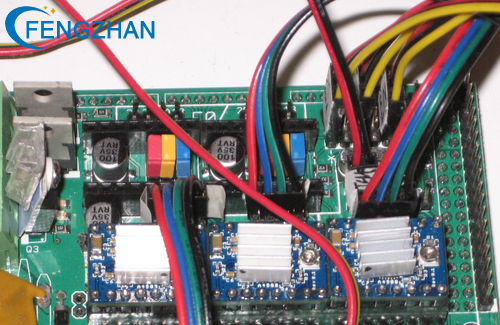

- Industrial equipment: motor drives, lead-acid battery chargers, military industry, clothing cotton machines, etc.
- LED lighting: These small LEDs can provide high-brightness light and are mounted on an aluminum substrate-based PCB
PCB circuit board wiring harnesses are commonly used in various fields, whether it is large-scale equipment or household appliances, communication base stations or personal mobile phones, computers or electronic toys all contain corresponding printed circuit boards.

Services & Advantage

CAD drawing draft: Complete with CAD drawing draft and interrelated technical parameters, and quality requirements.

Sample: make sample fees is responsible by clients if necessary and express charge is paid by you. The sample fees will revertto the quantities of order.

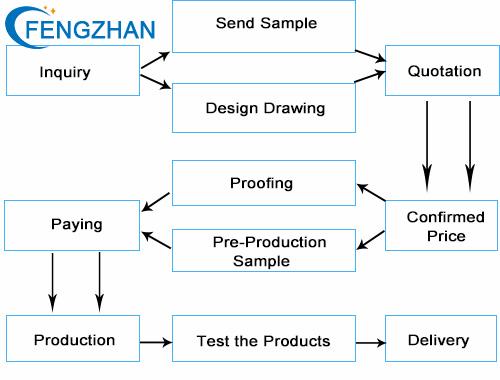

Order and Mass Production

1. We will send PROFORMA INVOICE to you when the order is confirmed.

2. We will start to have mass production when confirming our sample and 30% T/T deposit received.

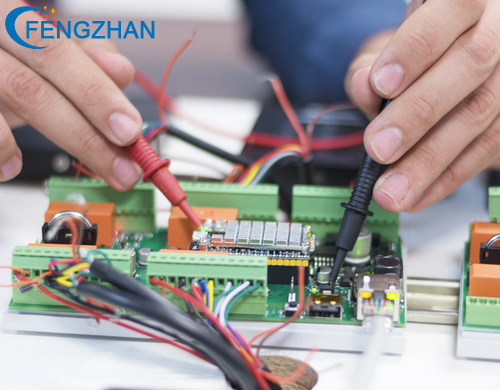

3. Quality is under strict manage and supervision during every production.

Advantage

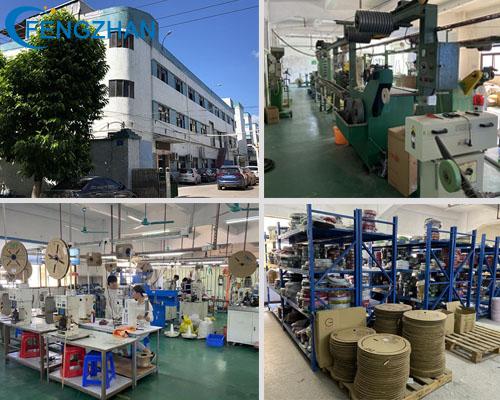

1.10+ Years in the Cable & Wire Harness manufacturing industry.

2.certification for connector ,such as UL,SGS, MSDS, CE, ISO9001,ROHS,REACH, CQC,TUV, PAHS, PFOS, PFOA ect.

3.Terminal type include JST, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK ect.
