IDC Flat Ribbon Cable AssemblyIDC Flat Ribbon Cable AssemblyIDC Flat Ribbon Cable AssemblyIDC Flat Ribbon Cable AssemblyIDC Flat Ribbon Cable Assembly

IDC Flat Ribbon Cable Assembly

Application: Automobile
Cable: UL2651 Flat Ribbon Cable
Connector: IDC
Pitch: 2.54mm

EMAIL

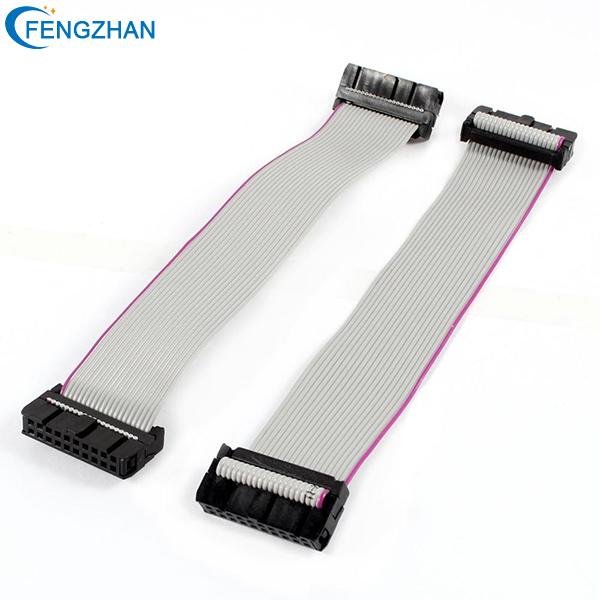

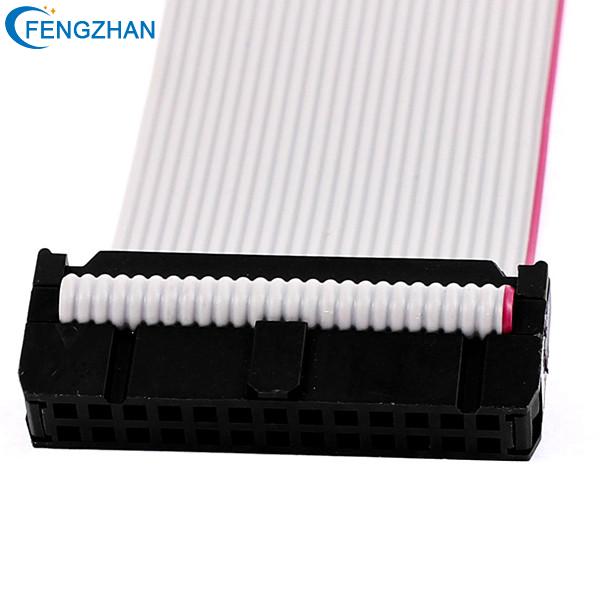

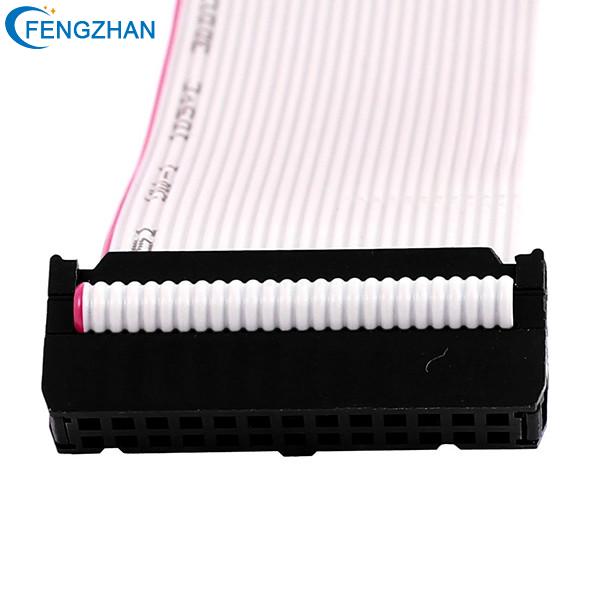

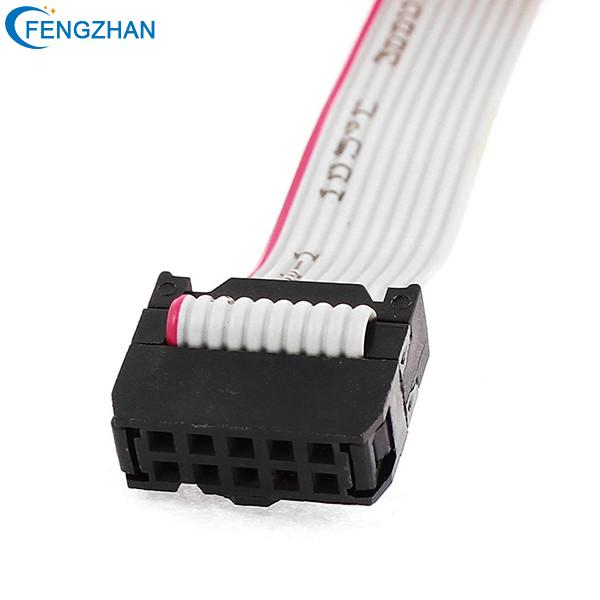

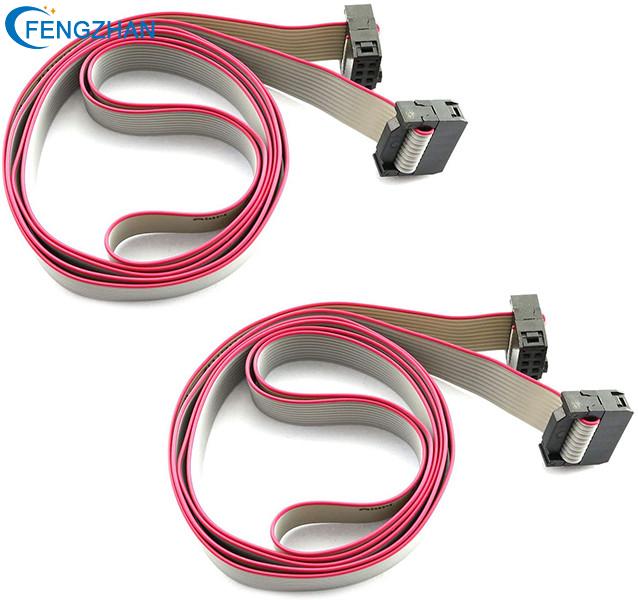

IDC Flat Ribbon Cable Assembly Details
IDC pitch: 1.27mm, 2.0mm, 2.54mm
Gray flat ribbon spacing: 0.635, 1.0, 1.27
Pitch: 2~64 pins
Gray cable: 2651 AWG 24#, 26#, 28#,30#,32#
Operating temperature: -40°C~+105°C
Insulation quilt: Eco-friendly PVC 45P(RoHS) 8058 grey
Requirement type: can be customized

IDC Flat Ribbon Cable assembly.jpg
IDC Flat Ribbon Cable Assembly Composition
IDC gray cable products are composed of two main raw materials, 1. IDC connectors, and 2. gray flat cables. First, determine the number of screens of the IDC connector and gray cable according to the specification. Cut out the appropriate product length according to the specification. Then install the IDC connector. Finally do the electrical test. The crimping method at both ends of the IDC is often a problem that we will encounter when communicating with customers. The easiest is to confirm the direction of the IDC bump, and the positive and negative direction of the IDC.

IDC connector material
Insulator material: PBT+30% glass fiber UL94V-0
Contact material: brass
Plating: Gold or Tin

IDC Connector Electrical Characteristics
Rated current: 3A
Insulation voltage: 500 V AC/DC
Insulation resistance: 1000MΩ
Contact resistance: 30mΩ max
Operating ambient temperature: -45℃~+105℃
Operating temperature: 230°C for 10 second

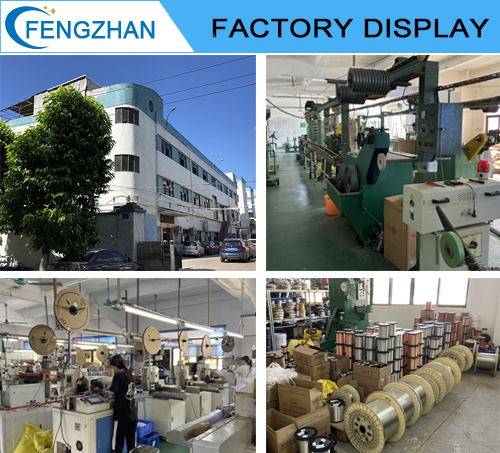

wire factory display.png


Before you place the order, we will tell you when will ship you need goods and will give you some good suggestions about the shipping ways for you got you need products faster and in economic way.  So friend welcome to visit our website and contact us directly !
