Pigtails Wire Harness

Pigtails wire harness is used to connect two electrical devices or to connect an electrical device to a power source. This product has good performance, good stability and high reliability.

EMAIL

The main component of pigtails Wire Harness, usually called wires, is the main part of the wire harness, and its main function is to carry the current required by the load. An important parameter of a conductor is the current carrying capacity, which is affected by the conductor diameter, conductor length, conductor resistivity and ambient temperature.


Details

Wire Size: 16AWG-32AWG, 0.01mm²-50mm² are available

Material: Housing:PA66;Terminal:Copper Alloy,Brass,Phosphor Bronze.

Method: Bare Copper, Tinned Copper, Silver Plated, Gold Plated wire

Protection Pipe: PVC tube, Corrugated pipe, Shrink Tube, Braid Tube

Operating Temperature range: 80℃, 105℃, 125℃, 180℃, 220℃, 300℃ (176°F- 572°F)

Connector Type: TE, Molex, JST,, Yeonho, Sumitomo, Yazaki or others

Protection: Waterproof, Low Smoke Halogen-Free, Anti-UV Cable, Acid and alkali-resistant cable are available.

Industries: Autmobiles, Electronics, Machines, Lighting, New energy

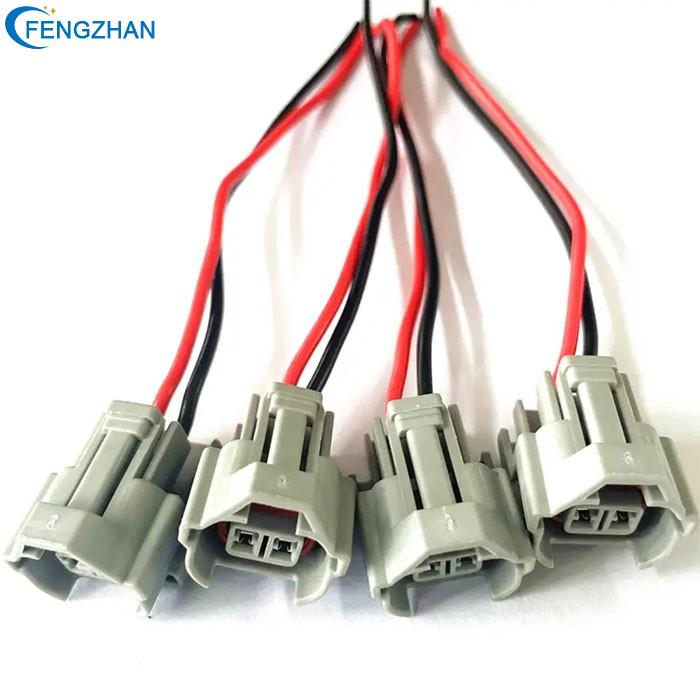

Pigtails Wire Harness 1.jpg

Pigtails wire harness is an indispensable system-level component of the vehicle. It distributes power to various systems of the vehicle and can also be used as a medium for signal data transmission between components. In short, in order to get a power source to light up, the car's electrical appliances (such as headlights) need to be connected to the battery or generator via the car's connecting cable to form a system power control circuit.

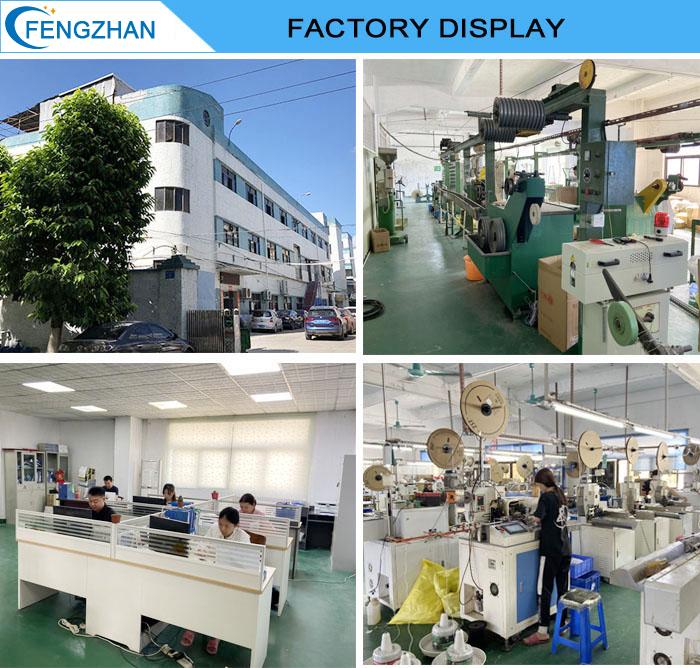

factory display-fengzhan.jpg

FAQ

Q1:Do you accept to customize products(OEM)?

A1:Yes,we custom wire harness for clients,just send us samples and drawing about the products you need.


Q2:Can you meet with CE,ISO etc.?

A2:Yes,we have CE,ISO,ROHS certificates,also can meet with clients special required about other certificates.


Q3:How about samples cost?

A3:We charge samples based on the products,but most samples are free.We will provide 5-10 pcs connector free samples for test.But you have to pay for the shipping cost.


Q4:Any requirement about the MOQ?

A4:Our MOQ is based on products.
