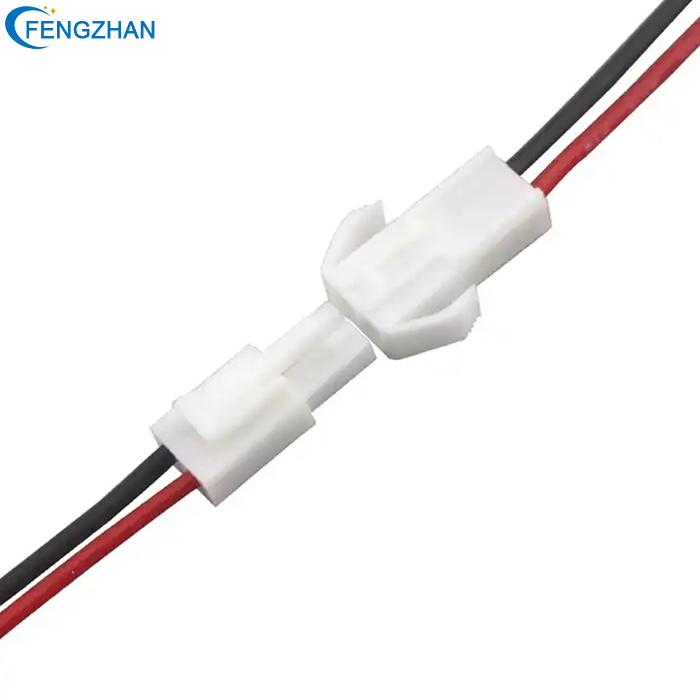

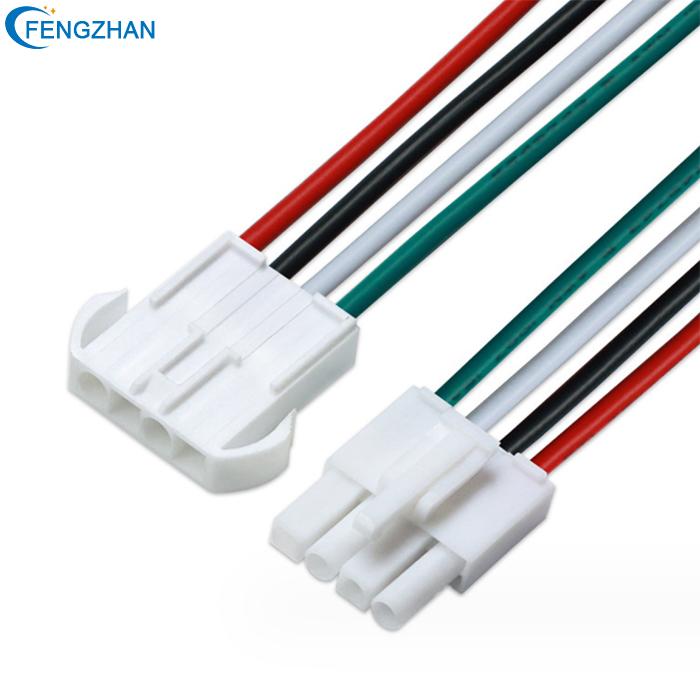

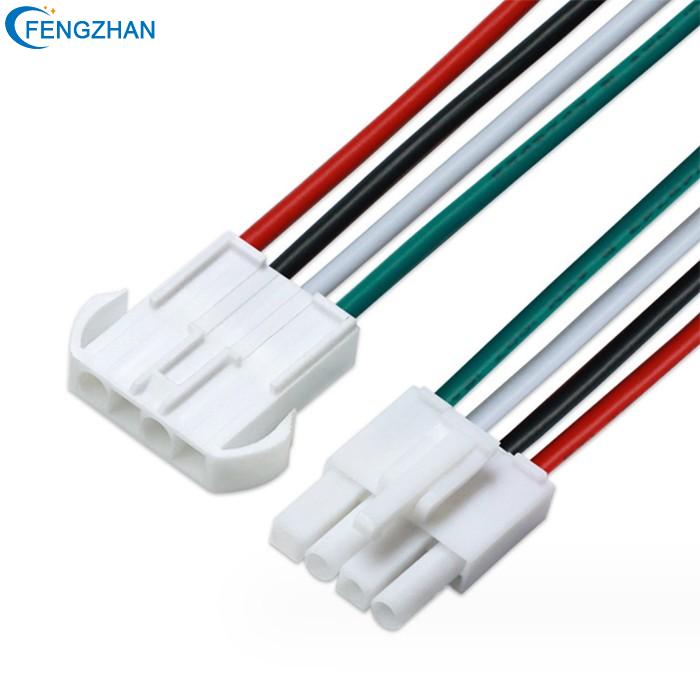

JST EL 4.5mm Connector Wire

JST EL 4.5mm Connector Wire is an electronic component used to connect different parts of a circuit. It can connect electronic devices, circuit boards, cables, etc. together. Its function is to transmit electrical energy, signals and data to realize the connection of circuits and the realization of functions.

Details

Connector: JST EL 4.5MM pitch

Color: Black, White, Red, CYAN

Wire Gauge: AWG#26 ～ #16  ,  0.13mm2 ～ 1.25mm2

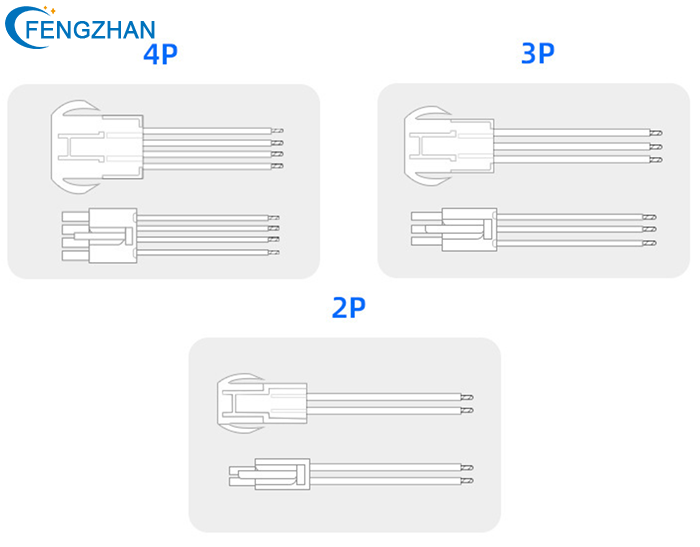

Pins: 2-10pins

Material of wire: SILICONE/PVC/XLPE/PTFE/FEP/PFA

wire connection: Tinned Red Copper

Current rating: 10A AC/DC

Voltage rating: 300V AC/DC

Temperature range: -25C~+85C

Contact resistance: 7mΩ Max

Insulation resistance: 1000mΩ Min

Withstanding voltage: 1500V AC/minute

Application: Automobile/Electrical Equipment

FAQ

Q1: Are you a manufacturer ?

A: Yes, we are the professional manufacturer of wire and cable harness.

Q2: Do you provide the customized product ?

A: Yes, we can develop new mold at you need if you can provide us with the samples or drawings.

Q3: What is the delivery time ?

A: Generally, it will take 3-5 days for small order or the stock goods; 7 to 15 for mass production after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
