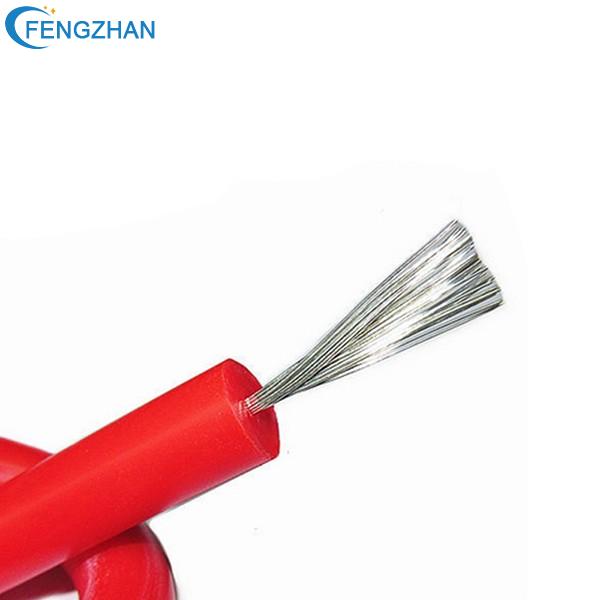

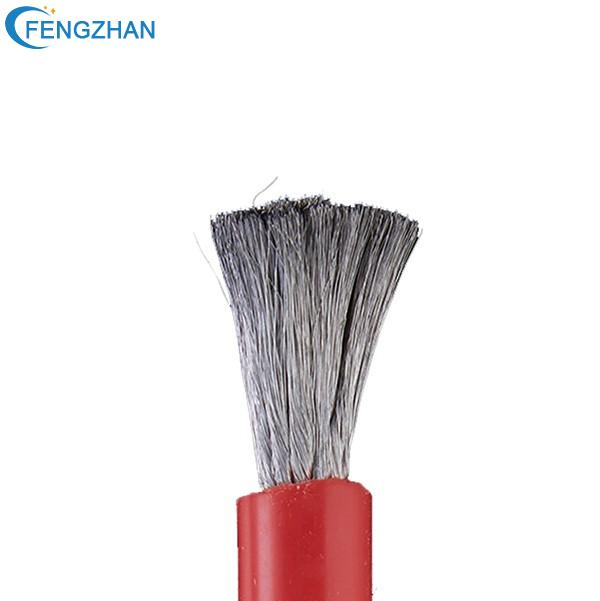

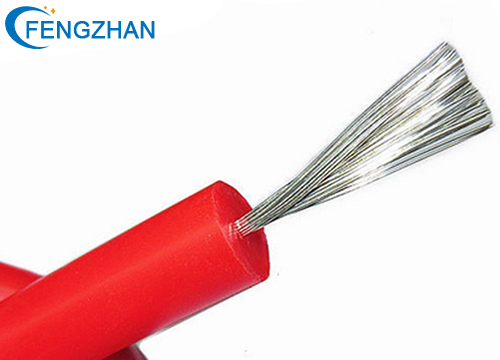

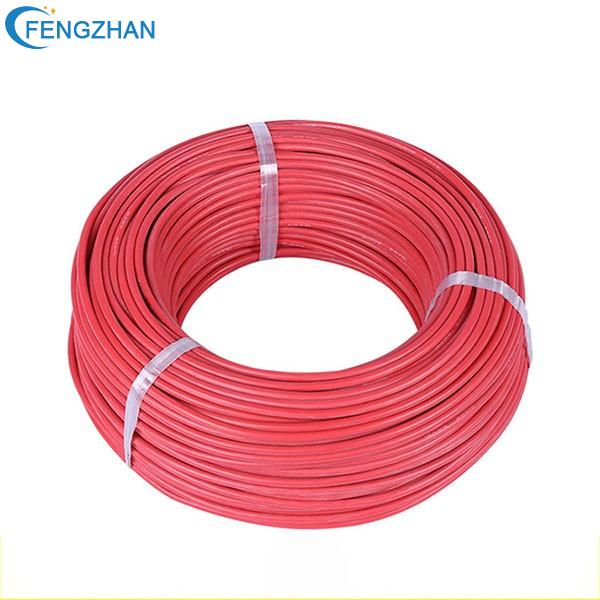

UL 3239 High Temperature Cables

Conductor Material: Tinned Copper
Rated Temperature: -60C ~ +200C
Insulation Material: Silicone Rubber
Color: Requirement

We can provide customers with UL 3239 silicone cable.

3239 Silicone Wire Details

Conductor Material: Tinned Copper

Rated Temperature: -60C ~ +200C

Insulation Material: Silicone Rubber

Color: Requirement

Type	Conductor Construction (No/mm)	OD (mm)	Voltage	M/Coil
3239 30 AWG	7/0.12 (Tinned Copper)	1.0	3KV	610 M/Coil
3239 28 AWG	7/0.12 (Tinned Copper)	1.37	3KV	305 M/Coil
3239 26 AWG	7/0.16 (Tinned Copper)	1.50	3KV	305 M/Coil
3239 24 AWG	11/0.16 (Tinned Copper)	1.60	3KV	305 M/Coil
3239 22 AWG	12/0.18 (Tinned Copper))	1.76	3KV	305 M/Coil
3239 22 AWG	17/0.12 (Tinned Copper)	1.50	3KV	500 M/Coil
3239 20 AWG	20/0.18 (Tinned Copper)	1.91	3KV	305 M/Coil
3239 18 AWG	30/0.18 (Tinned Copper)	2.17	3KV	305 M/Coil
3239 16 AWG	52/0.18 (Tinned Copper)	2.50	3KV	305 M/Coil

3239 Silicone Wire Feature

1. Silicone wire has the advantages of high temperature and low temperature resistance, excellent electrical insulation properties, excellent chemical stability, high voltage resistance, aging resistance, and long service life.

2. Use environmentally-friendly silicone rubber materials as insulation materials. The silicone rubber is soft and has good flame-retardant properties, making the wire performance more superior.

3. It has good anti-acid, anti-alkali and anti-fungal properties, and can withstand damp and hot environments and a variety of greases. Silicone wire is waterproof and pressure resistance.

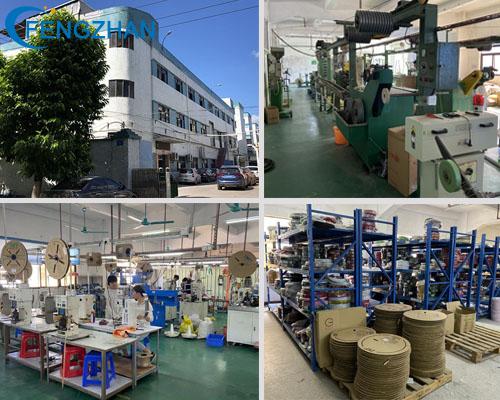

We have advanced electronic wire extruder, and has obtained relevant UL certification and environmental certification. Different specifications of wire can be customized on demand. Customers are welcome to customize with drawings and samples. We provides free proofing.

3239 Silicone Wire
