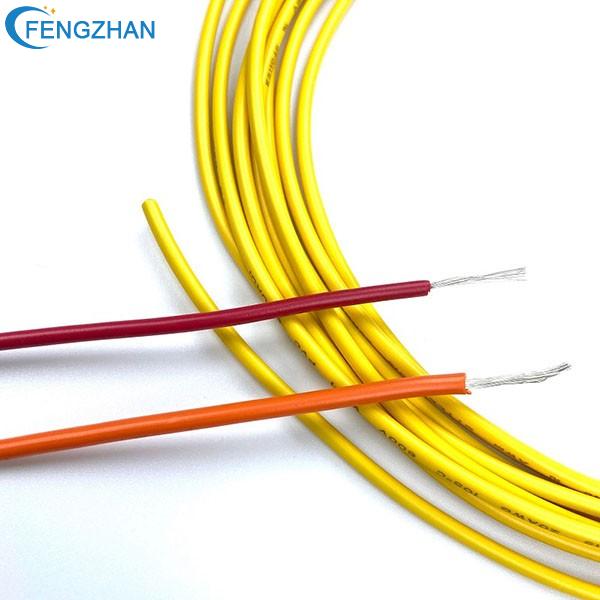

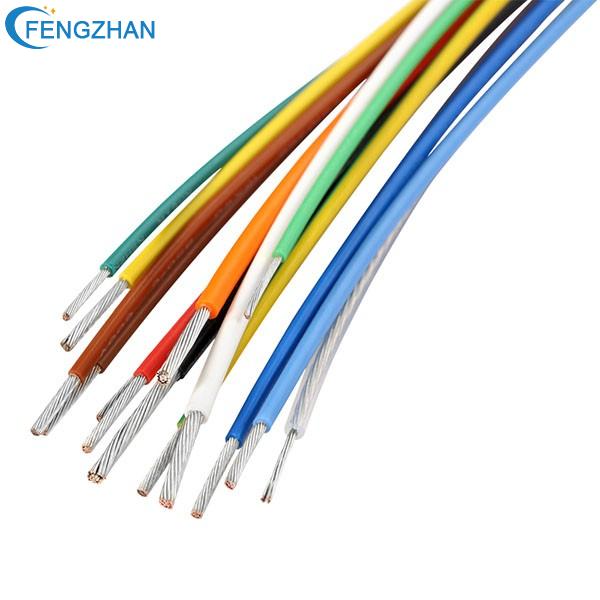

UL 1571 Hook Up Wires

Technical standard: can pass UL Vw-1 vertical flame resistance test
Rated voltage: 300V & 30V
Rated temperature: 80℃
Conductor type: tinned copper wire
Insulation material: PVC
Product color: red/blue/black/white/green/yellow, etc

EMAIL

UL 1571 Hook Up Wires Details

Technical standard: can pass UL Vw-1 vertical flame resistance test

Rated voltage: 300V & 30V

Rated temperature: 80℃

Conductor type: tinned copper wire

Insulation material: PVC

Product color: red/blue/black/white/green/yellow, etc

Type of Wires

Conductor Construction

(No/mm)

OD

(mm)

Voltage

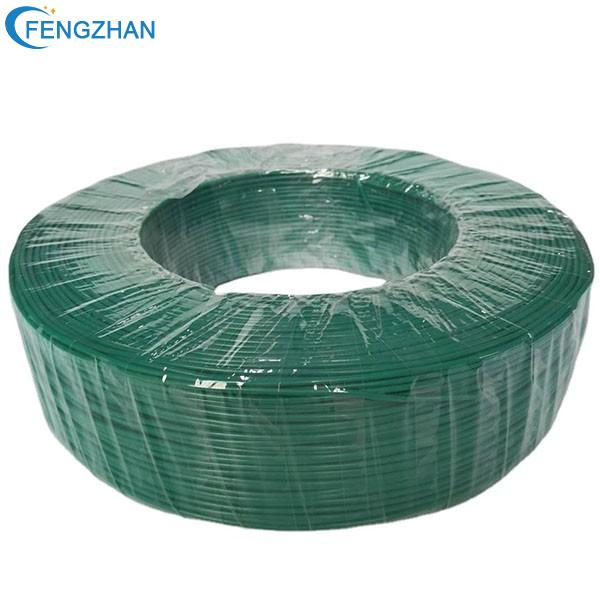

M/Coil

UL 1571 32AWG

7*0.08 (Tinned Copper)

0.6

30V

610 M/Coil

UL 1571 30AWG

7*0.10 (Tinned Copper)

0.8

30V

610 M/Coil

UL 1571 28AWG

7*0.127 (Tinned Copper)

0.9

30V

610 M/Coil

UL 1571 26AWG

7*0.16 (Tinned Copper)

1.0

30V

610 M/Coil

UL 1571 24AWG

7*0.20(Tinned Copper)

1.1

30V

610 M/Coil

UL 1571 22AWG

7*0.25(Tinned Copper)

1.25

30V

610 M/Coil

UL 1571 20AWG

21*0.178 (Tinned Copper)

1.5

30V

610 M/Coil

UL 1571 18AWG

34*0.178 (Tinned Copper)

1.7

30V

610 M/Coil

UL 1571 Hook Up Wires Features

PVC wire has good physical properties, high chemical stability, flame retardant properties and excellent electrical insulation properties.
Scope of application
PVC wires are widely used in the internal wiring of electronic machinery, lighting fixtures, industrial machinery, home improvement, household appliances, electronic products and other equipment.
Our company has advanced electronic wire extruder, and has obtained relevant UL certification and environmental certification. Different specifications of wire can be customized on demand.

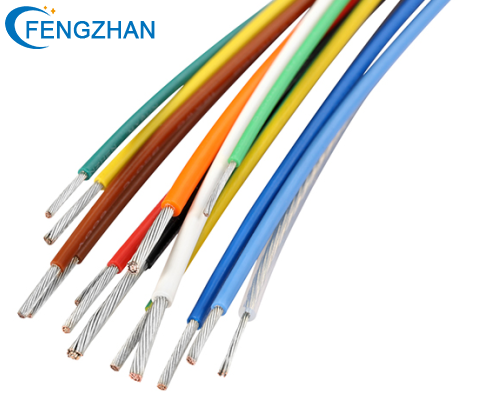

UL 1571 Wires

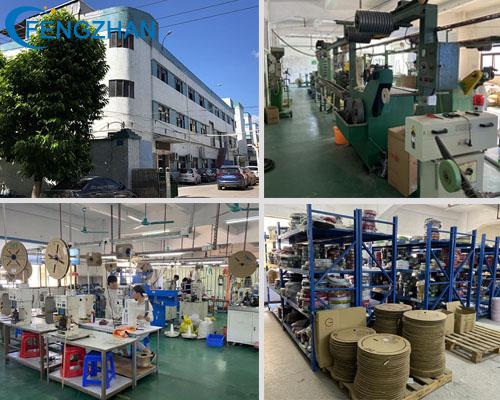

factory display1.jpg

factory display.jpg

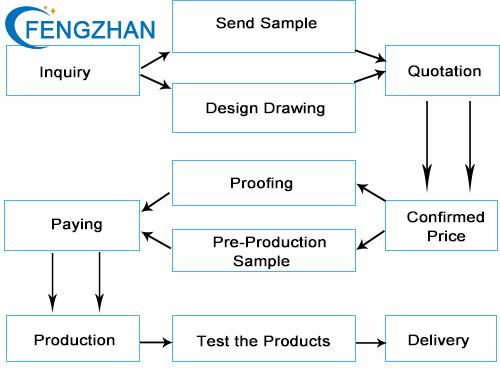

inquiry process.jpg
