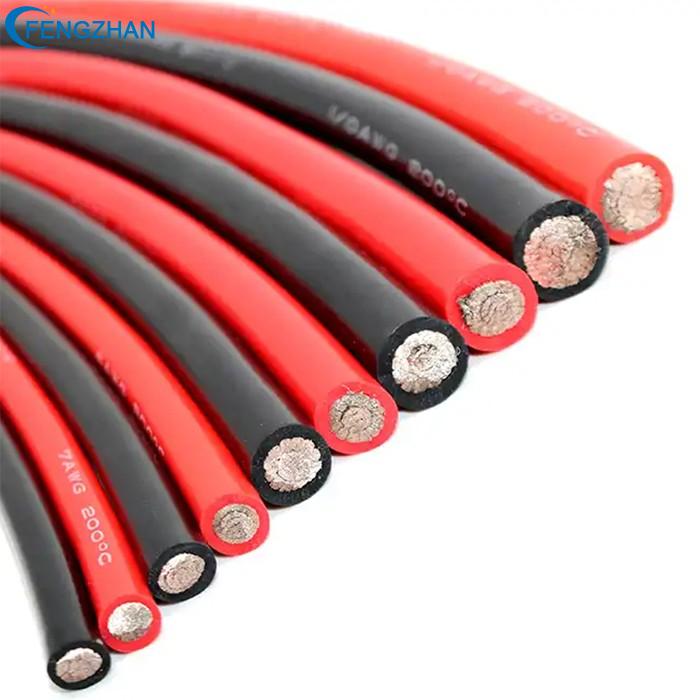

Silicone Insulated Wire

Silicone insulated wire is widely used in internal wiring of electronic, battery, RC batteries, model wiring, electric appliance and instrument equipment, external wiring of Large transformer, lighting and motor.

EMAIL

Features

1.Characteristics : Anti - acid & alkali, oil - resistant, moisture-proof, anti - mildew, etc. Easy to peel and cut.

2.Flammability Test : pass the UL VW - 1 and CSA FT1 vertical flame test

3.Over Diameter tolerance: ±0.1mm

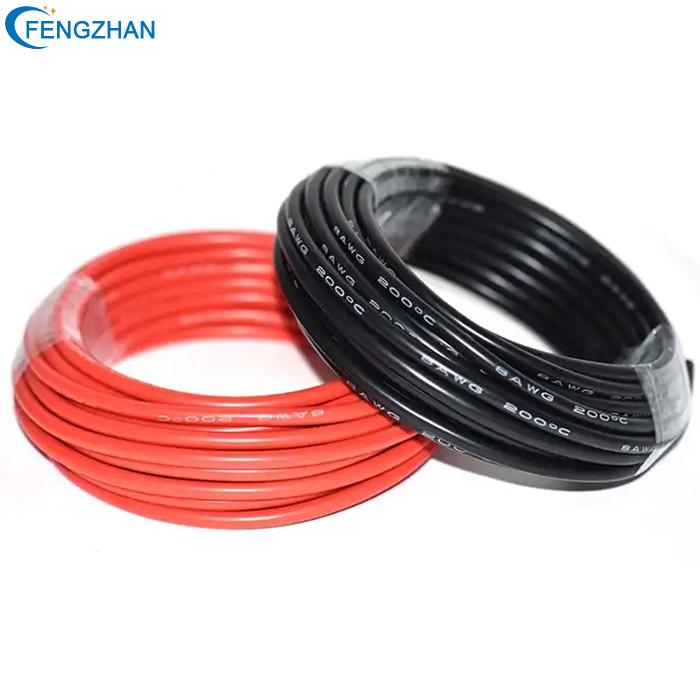

4.Packing: It's usually 100 meters per roll

Silicone Insulated Wire 2.jpg

Details

Rated Voltage: 300V, 600V

Temperature range: -60 °C to +200 °C

Color: White/Blue/Red/Black/Yellow/Green

Conductor: tinned copper wire

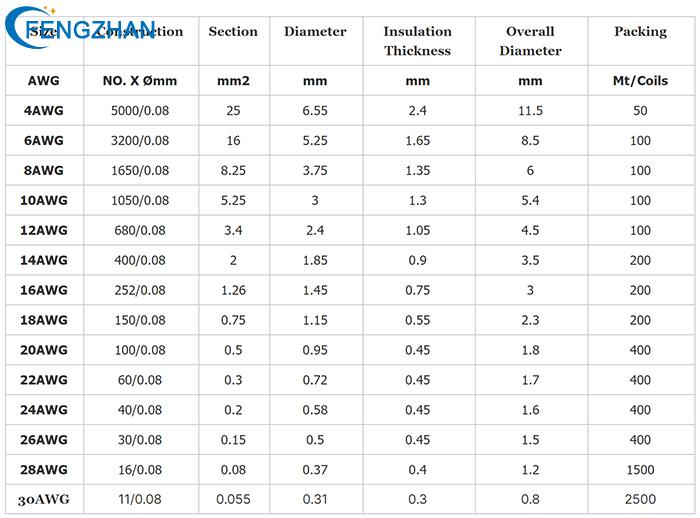

Model: 10-30AWG

Usage: High Temperature Electric Machine Internal Wiring, Home lighting wiring, Led lighting wiring, automotive wiring, energy vehicle battery etc.

Silicone Insulated Wire.jpg

Silicone wire range includes

SIA: Silicone insulated with a solid conductor

SIAF: Silicone insulated with a flexible conductor

SIAF/GL: Silicone insulated with a flexible conductor and a glass fibre braid

SIHF: Multicore, silicone insulated and sheathed with a flexible conductor available with glass braid, copper screen or galvanised wire braid armour.

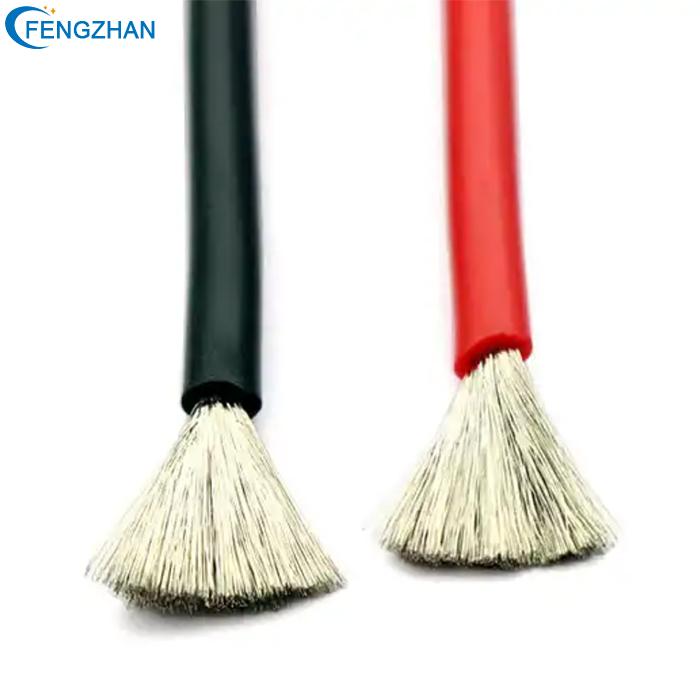

NOTE :  This is ultra soft silicone insulated wire, which uses 0.08mm stranded tinned copper wire, if you need normal soft silicone wire, price is much cheaper, if you need, enquiry me now!
