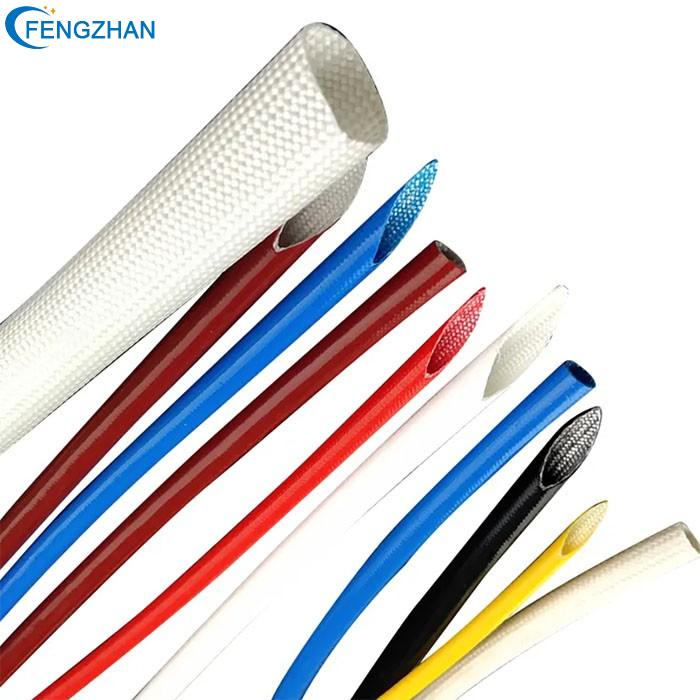

Silicone fiberglass sleeve: Fiberglass tube is made of thermosetting resin (usually epoxy resin) as the matrix and glass fiber as the reinforcing material, and is pultruded. It has the advantages of corrosion resistance, friction resistance, high strength, insulation, antistatic, and low friction resistance. Additives can also be used according to actual needs to have functions such as flame retardancy and shrinkage reduction. Mainly used in electronic and electrical fields.
Manufacturer of Silicone Fiberglass Sleeve
The silicone fiberglass sleeve is a silicone fiberglass casing, which is made of alkali-free glass fiber braided, high-temperature treated, and surface coated with silicone copolymer tree. Its flame retardant grade is VW-1. It has good insulation properties and can withstand high temperatures of 200°C. It has good flexibility and good mechanical properties. It can withstand high voltages of 1500V, 2500V, 4000V, 7000V, 10000V, The silicone fiberglass sleeve has passed UL certification.

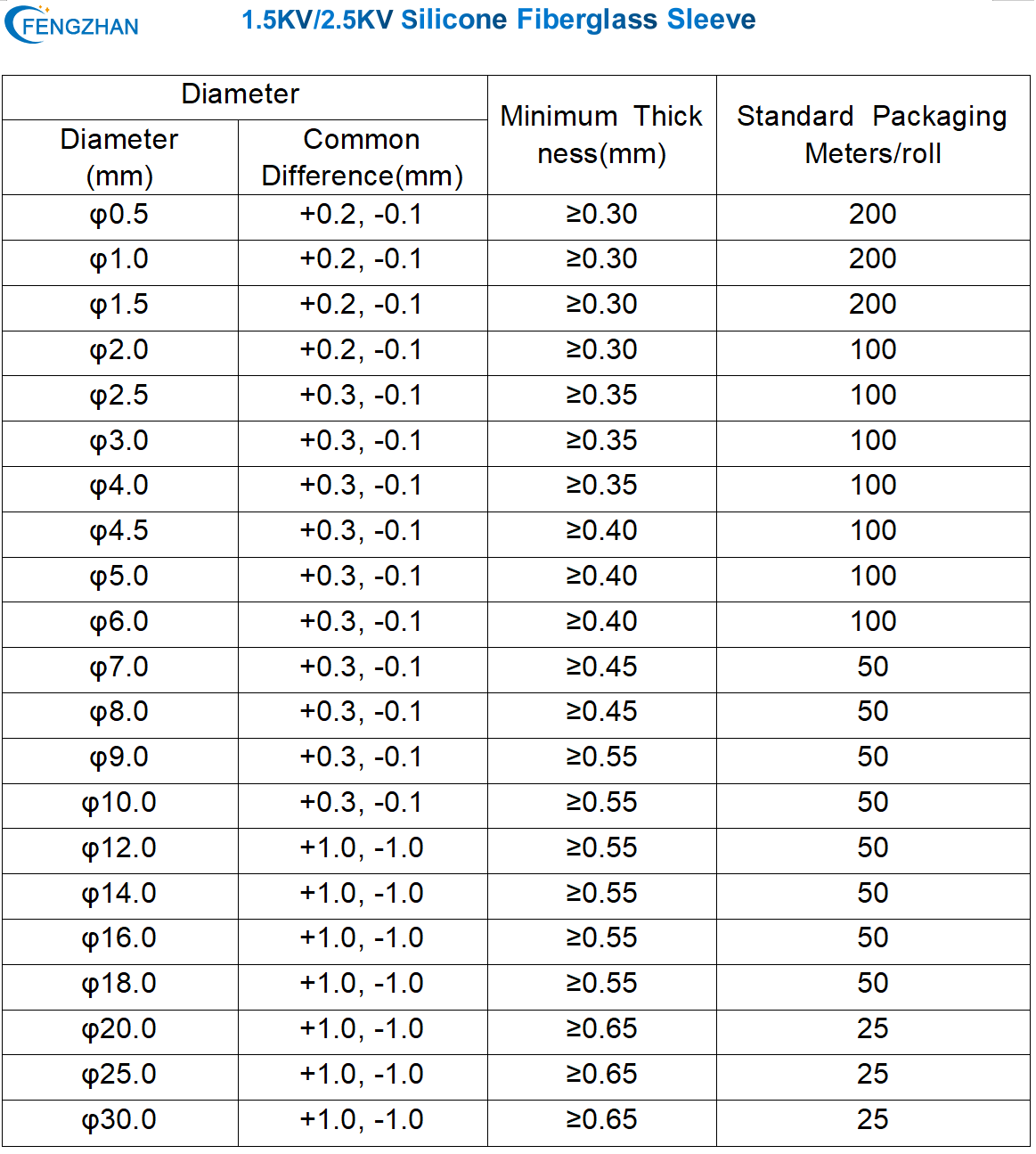

1.5KV/2.5KV Silicone Fiberglass Sleeve
1.5KV/2.5KV silicone fiberglass tube is woven into a tubular shape from alkali-free glass fiber, then coated with silicone resin, and then completed by high temperature treatment. It has good dielectric properties as well as good flexibility, flame retardancy and temperature resistance. Silicone fiberglass tubes are widely used in heat insulation and insulation of motors, household appliances, electric heating equipment, electronic devices and bundled wires.

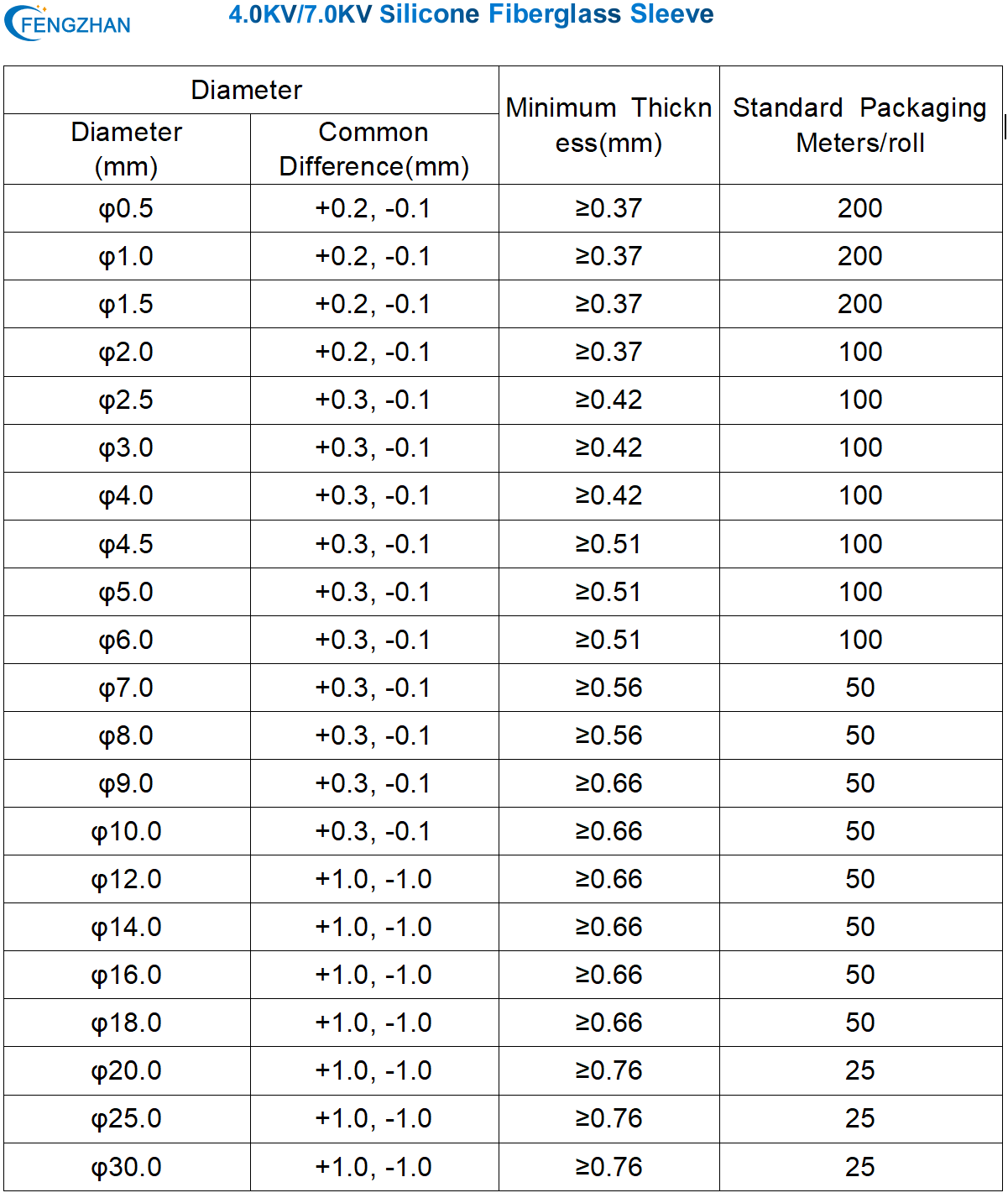

4KV Silicone Coated Fiberglass Sleeving
4KV silicone coated fiberglass sleeving is woven into a tube shape from alkali-free glass fiber, then coated with silicone resin, and then completed by high temperature treatment. It has good dielectric properties as well as good flexibility, flame retardancy and temperature resistance. It is widely used in heat insulation and insulation of motors, household appliances, electric heating equipment, electronic devices and bundled wires.
7KV Silicone Fiberglass Tube (inner fiber and outer silicone)
7KV silicone rubber fiberglass tube is made by weaving glass fiber into a tube shape, extruding a layer of silicone rubber on the outer layer of the casing, and then curing it by heating. It has high dielectric strength, good flexibility, heat aging resistance, flame retardancy, and a temperature resistance level of 200°C. Silicone rubber fiberglass tubes are widely used for high-voltage insulation protection of electrical appliances with high heat generation.
Silicone Fiberglass Sleeve(outer fiber and inner silicone)
The outer fiber and inner silicone coated fiberglass sleeve is made of silicone rubber tube produced by extrusion. After weaving the glass fiber on the outside, it is coated with silicone resin and processed at high temperature. It has good dielectric properties, good flexibility, flame retardancy, and temperature resistance level of 200°C. Fiberglass sleeve with outer fiber and inner rubber are widely used in high-demand insulation protection of motors, household appliances, electric heating equipment, etc.
FAQ
Q: Are you a factory or trading company?
A: We are a insulated sleeve factory, passed ROHS, OEM&ODM service are available.
Q: Can you provide free samples?
A: Yes, Free samples is available, you just need to pay for the shipping cost.
Q: What is your MOQ?
A: Normally, 100m per a color or size.
Q: What is your payment terms?
A: Payment amount ≤ 600USD, 100% in advance; payment amount ≥ 600USD, 30%T/T in advance, balance before shippment.

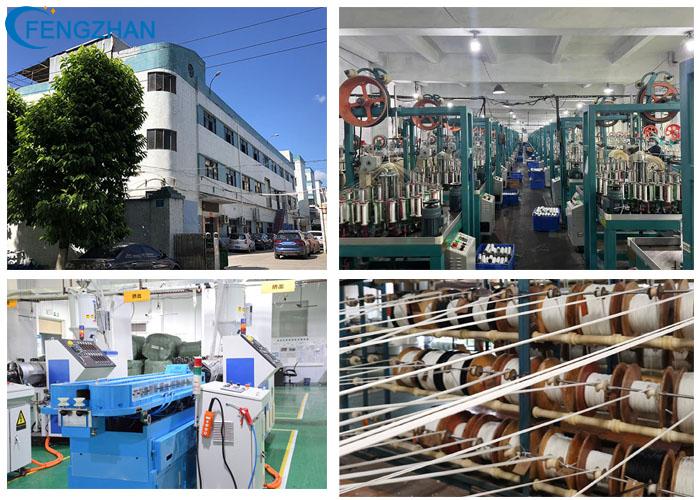

Fengzhan Electronic develops and produces various specifications of silicone fiberglass sleeves. The products have excellent thermal insulation and electrical properties and are suitable for insulation protection of various electrical appliances. Welcome to contact us: lynn@fzwires.com
