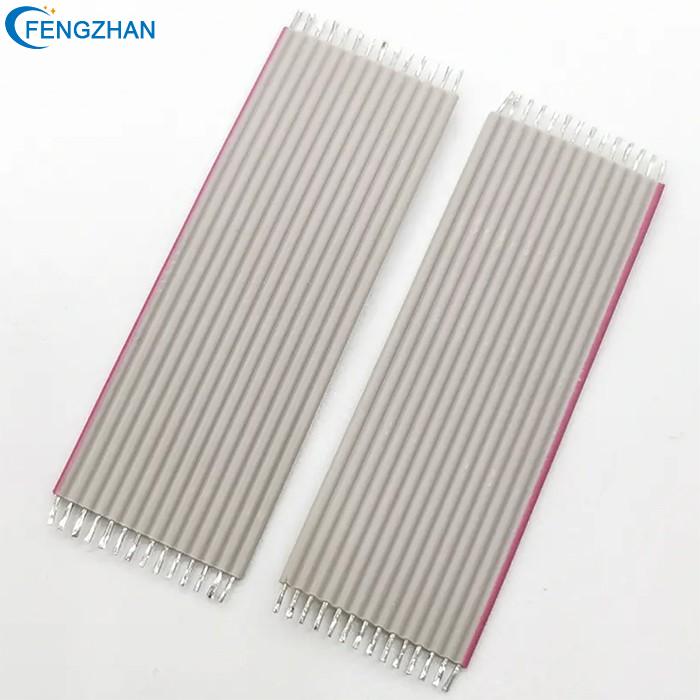

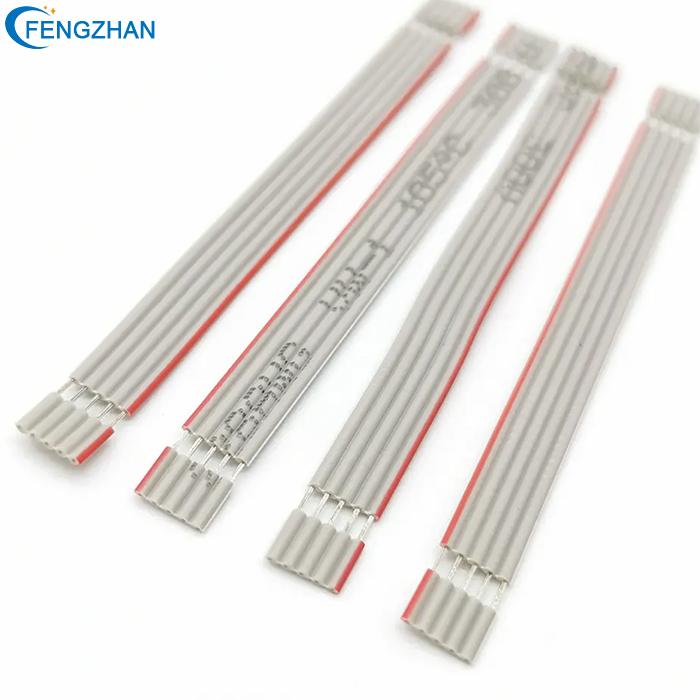

PCB Ribbon Cable

Details

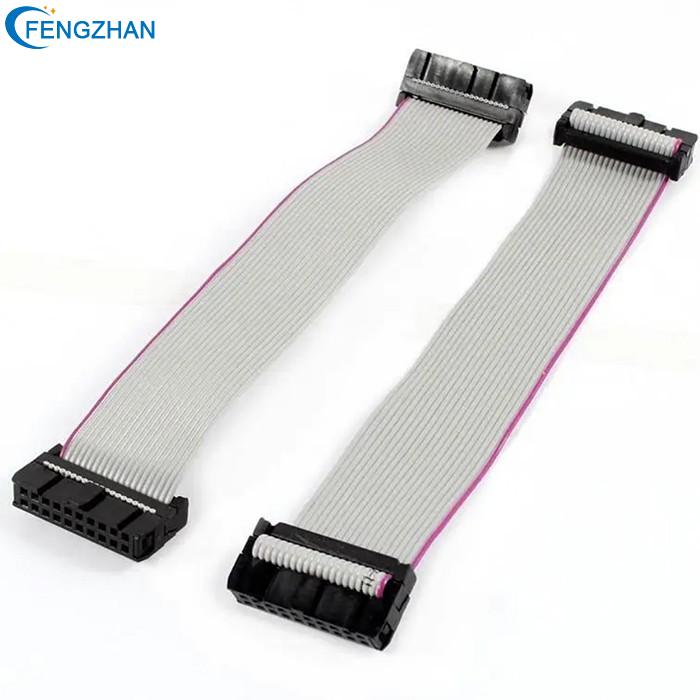

Item: IDC Flat Ribbon Cable for PCB Board

Pitch: 1.0/1.27/2.0mm/2.54mm

Insulation: Vinyl (PVC) insulated

Wire Type: UL2651 Flat ribbon cable

Shield: Optional

Pin: 6/8/10/12/14/16/18/20/24/26/30/34/40/44/50/60/64P

Covering: Optional A 6mil or heavier PVC covering

Wire color: Grey or rainbow

Length: Customizable

Temperature Rate: -40°C-105°C

PCB Ribbon Cable Size

30awg, 2---80p, spacing 0.635mm, conductor resistance at 20℃ is 113ω/kft, and withstand voltage strength is 1500acv/1min.

28awg, 2---60p, spacing 1.27mm, conductor resistance at 20℃ is 70.7ω/kft, and withstand voltage strength is 1500acv/1min.

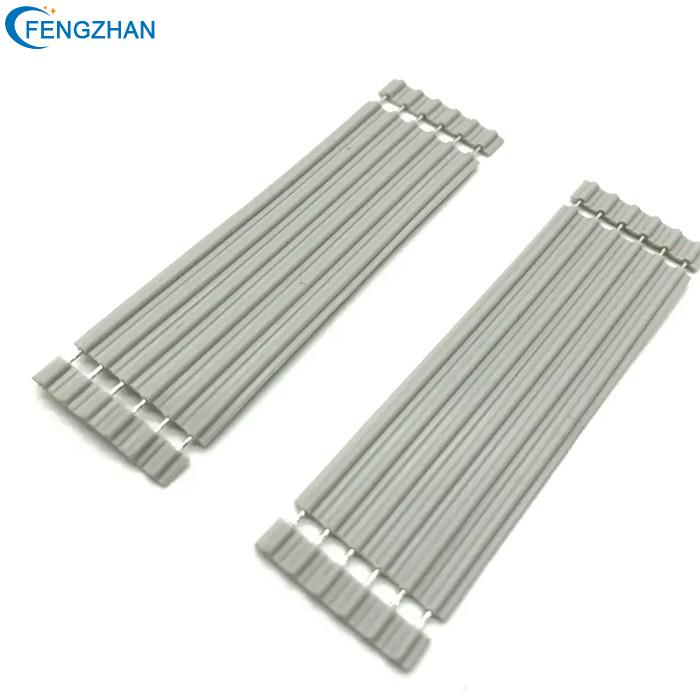

26awg, 2---40p, spacing 2.0mm, 2.54mm, the wire is flat on one side and round on the other side, the conductor resistance is 44.4ω/kft at 20℃, and the withstand voltage strength is 1500acv/1min.

PCB ribbon cable uses copper wire, pvc and other raw materials, has a complete set of production equipment, and the product quality is stable and reliable. This product has passed the EU RoHS environmental certification.
