Flat Ribbon Cable

Flat Ribbon Cable Manufacturer

Flat ribbon cable has excellent electrical properties, dielectric properties, and heat resistance. Flat ribbon cables can be moved, bent, and twisted without damaging the wires, and can conform to different shapes and special package sizes.

Effect:

1. Ribbon cable is used for data transmission in moving parts and active areas, such as the data cable connecting the motherboard inside the computer to the hard drive and optical drive, and the motherboard connecting the mobile phone motherboard to the display screen and other equipment ;

2. The flat ribbon wire supplies power to the system module to ensure the normal operation of the module.

3. Flat cable assemblies also play a very important role in home appliances. For example, household appliances such as TVs, stereos, computers, etc. all require the use of cables. They can connect various devices, allowing home appliances to communicate with each other to share media and file resources.

There are different types of flat ribbon cables, such as FFC cable, UL20624, UL20798, UL2896, UL2651 cable, UL2468 cable, IDC Cable, etc. Each type is suitable for different connection needs.

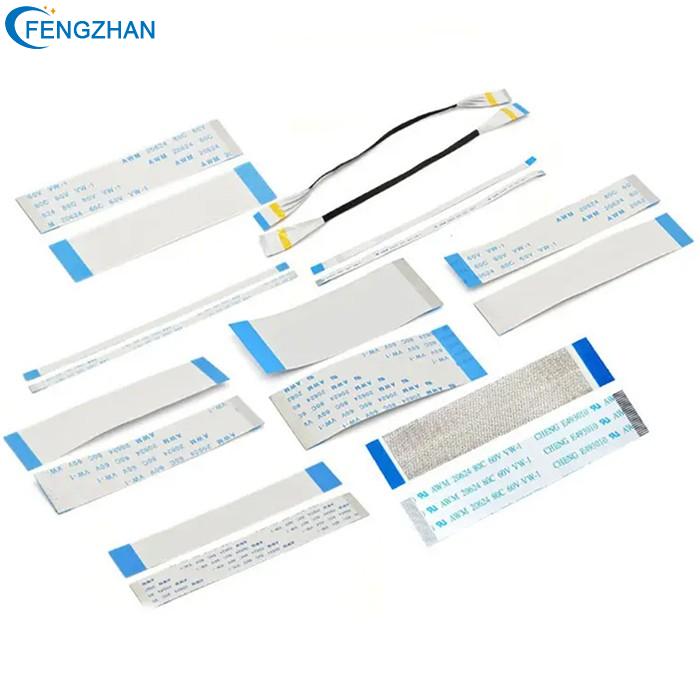

FFC Flat Cable

FFC cable, also known as Flexible Flat Cable (FFC), can arbitrarily select the number and spacing of wires, making wiring more convenient, greatly reducing the size of electronic products, reducing production costs, and improving production efficiency. It is most suitable for use between moving parts and motherboards, and PCBs. It is used as a data transmission cable between boards and in miniaturized electrical equipment. Common specifications include flexible cables with various spacings such as 0.5mm, 0.8mm, 1.0mm, 1.25mm, 1.27mm, 1.5mm, 2.0mm, 2.54mm, etc.

FFC cable is currently widely used in the connection between the print heads of various printers and motherboards, signal transmission and board-to-board connections in plotters, scanners, copiers, audio, LCD appliances, fax machines, various video disc players and other products.

Get A Quote: Lynn@fzwires.com

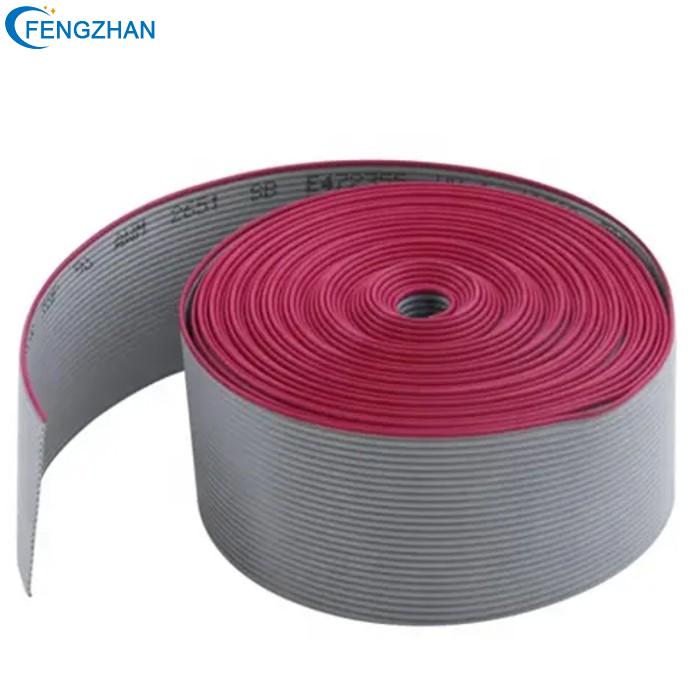

UL2651 Flat Ribbon Cable

ul2651 flat cable products have the characteristics of softness, acid resistance, oil resistance, moisture resistance, mildew resistance, etc.; they are widely used in digital cameras, instruments, chargers, audio, medical equipment, toys, household appliances, circuit boards and other fields.

Rated temperature: 105℃,

Rated voltage: 300 V

Conductor: Use 36-14 AWG single or stranded bare or tinned copper

Outside the line: PVC polyvinyl chloride insulation material, compliant with ROHS environmental protection

Grade characteristics: standard insulation thickness, easy to cut, easy to peel, soft, oil-resistant, moisture-resistant, mildew-resistant, etc.

Features: Generally used for internal wiring of electronics, electrical appliances and equipment instruments, large transformers and lamps, and connecting wires such as motor lead wires.

Get A Quote: Lynn@fzwires.com

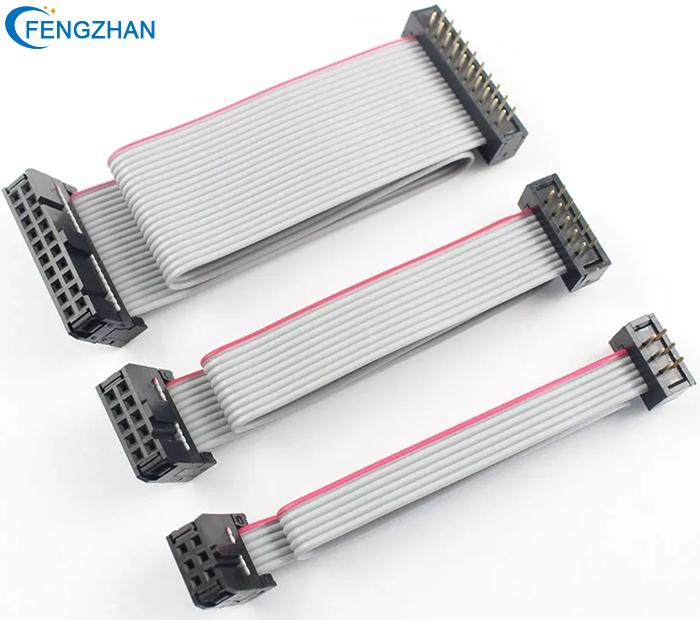

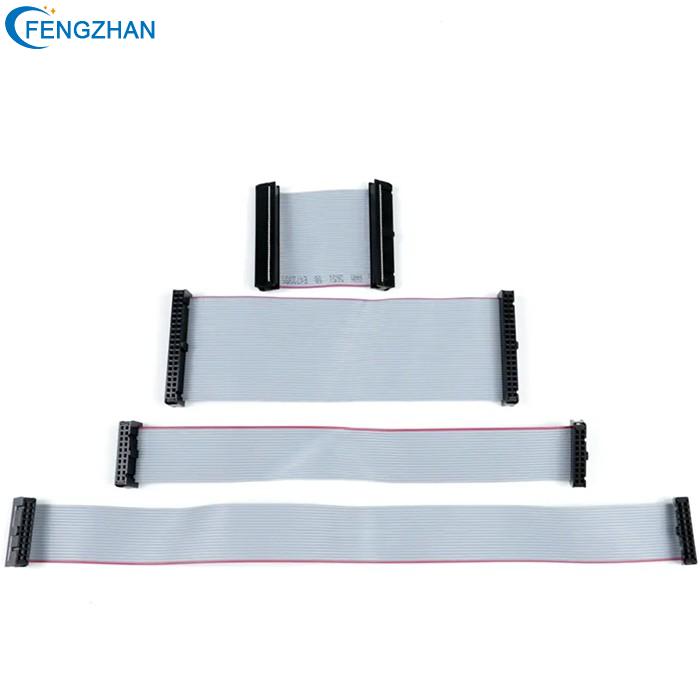

IDC Ribbon Cable

As a professional-grade data center equipment, IDC Ribbon Cable has the characteristics of high-speed transmission, low latency, good scalability, high security and reliability.

Connector: Piercing IDC Connector

Terminal spacing: 1.27mm/2.0mm/2.54mm

Wire spacing: 1.0mm/1.27mm/2.54mm

Wire number: 28AWG-26AWG

PIN bit: 2P-64P

Effect

1. IDC cable is mainly used in large home appliances, computers, telecommunications and automation. It is divided into single groove type lines, double groove type lines, and groove box type lines. Single groove type is suitable for wiring, double groove type and groove box type. Suitable for electronic wires.

2. Improve data center operation efficiency. Reasonable cabling planning can reduce the crossover and confusion of network cables, reduce signal interference, improve data transmission speed and stability, thereby improving the overall operating efficiency of the data center.

3. Improve equipment maintenance and scalability. A reasonable cabling scheme can reduce equipment failure rates and reduce maintenance costs and time. At the same time, the expansion needs of the data center should be taken into consideration when cabling, and space and interfaces should be reasonably reserved to facilitate later equipment expansion and upgrades.

4. Fast and reliable circuit connection. Wire routing is widely used in electrical wiring systems, especially where a large number of wires need to be connected.

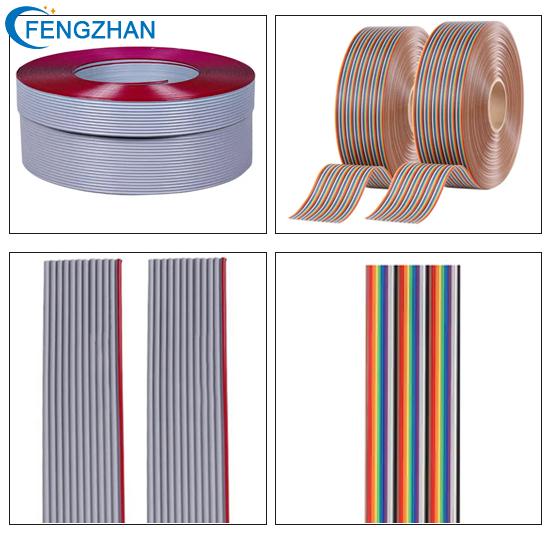

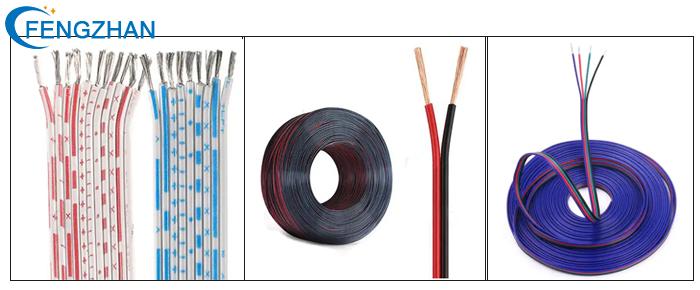

Custom Ribbon Cable

Ribbon cable is a commonly used model in electronic wires and is widely used in internal power connection lines of electronic and electrical equipment. Its excellent performance is favored by the majority of users.

Features

1. Conductor structure: Multi-copper wire stranding (AS stands for bare copper, TS stands for tinned copper) and the outer cover is polyvinyl chloride (commonly known as PVC).

2. The product has properties such as softness, acid resistance, oil resistance, moisture resistance, and mildew resistance.

3. Ribbon cable is widely used in digital cameras, instruments, chargers, audio, medical equipment, toys, household appliances, circuit boards and other fields.

4. Complete colors, red, black, white, yellow, green, blue, purple, brown, etc. Other colors can be produced according to customer requirements.

Get A Quote: Lynn@fzwires.com

Flat Ribbon Cable/Flat Cable Assembly

1)Professional flat ribbon cable manufacturer for automotive, home appliance, electronic, industrial control, medical equipment and so on.

2) We accept OEM/ODM design, welcome any enquiry for flat ribbon cable customization, whenever you have 100pcs or 100K pcs demand, we will reply you and quote for you with best price as we can.
