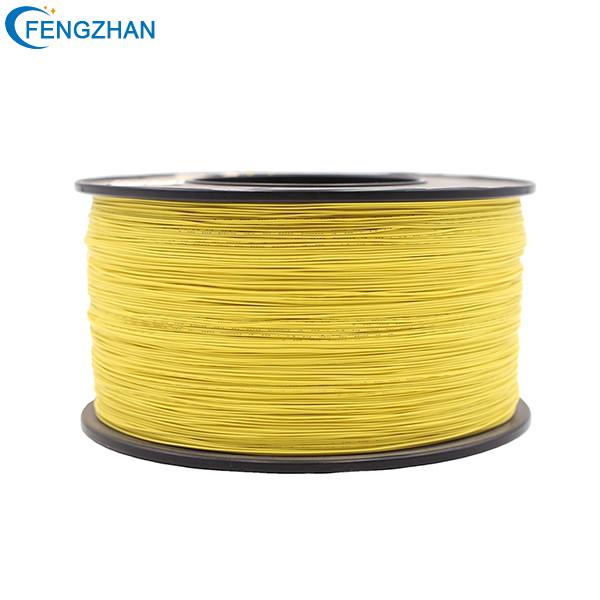

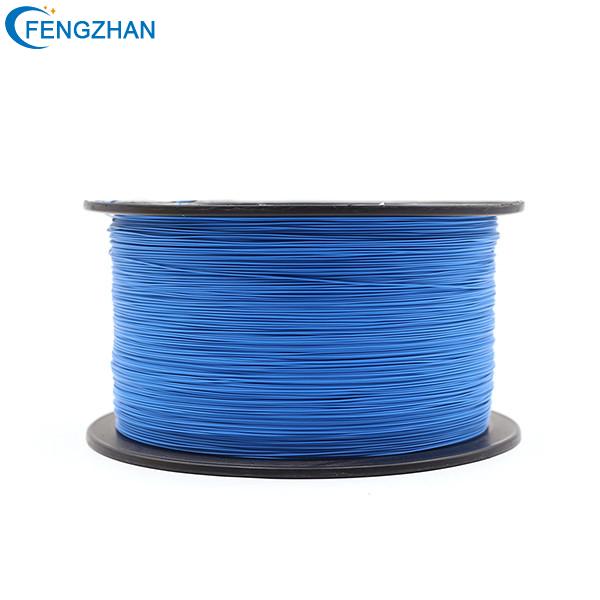

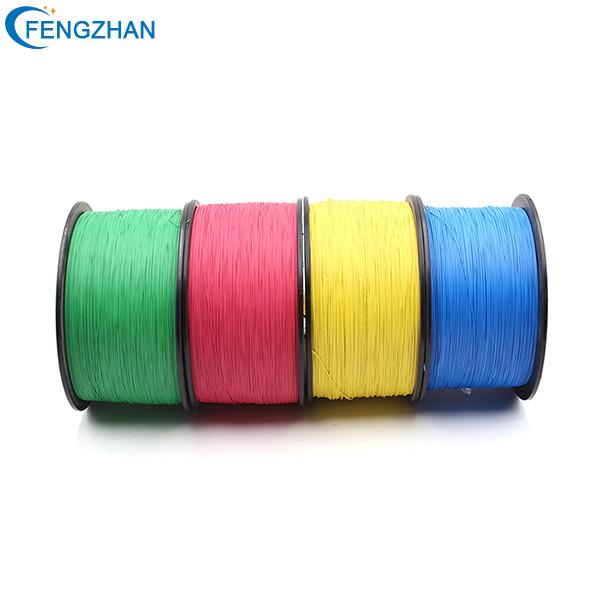

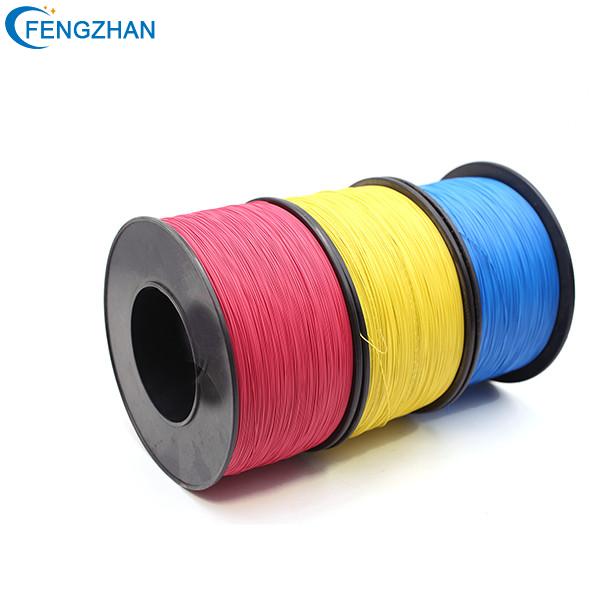

UL3302 Halogen Free Cable

UL3302 Halogen Free Cable Details
Rated temperature: 105 ℃
Rated voltage: 30v
Reference standard: UL758, UL1581, CSA C22.2No.210.2
Solid or standed, tinned or bare copper conductor 40AWG min
XLPE insulation: comply with ROHS. REACH environmental standard
Passes UL VW-1 and JQA F-Mark flame test
Uniform insulation thickness to ensure easy stripping and cutting
Application: For general purpose internal wiring of appliance

UL3302 Halogen Free Cable Feature
The cross-linked polyethylene insulated cable adopts the method of peroxide cross-linking, so that the polyethylene molecule changes from a linear molecular structure to a three-dimensional network structure, and from a thermoplastic material to a thermosetting material, and the working temperature is increased from 70 ° C to 90 ° C. Significant Improve the current carrying capacity of the cable. XLPE insulated cables have the following advantages:
1. Heat resistance: XLPE with a net-like three-dimensional structure has excellent heat resistance. It will not decompose and carbonize below 300 ℃, the long-term working temperature can reach 90 ℃, and the thermal life can reach 40 years.
2. Insulation performance: XLPE maintains the original good insulation properties of PE, and the insulation resistance is further increased. Its dielectric loss tangent value is very small, and it is not greatly affected by temperature.
3. Mechanical properties: Due to the establishment of new chemical bonds between macromolecules, the hardness, stiffness, wear resistance and impact resistance of XLPE are improved, thus making up for the shortcoming of PE being susceptible to environmental stress and cracking.
4. Chemical resistance: XLPE has strong acid and alkali resistance and oil resistance. Its combustion products are mainly water and carbon dioxide, which is less harmful to the environment and meets the requirements of modern fire safety.
