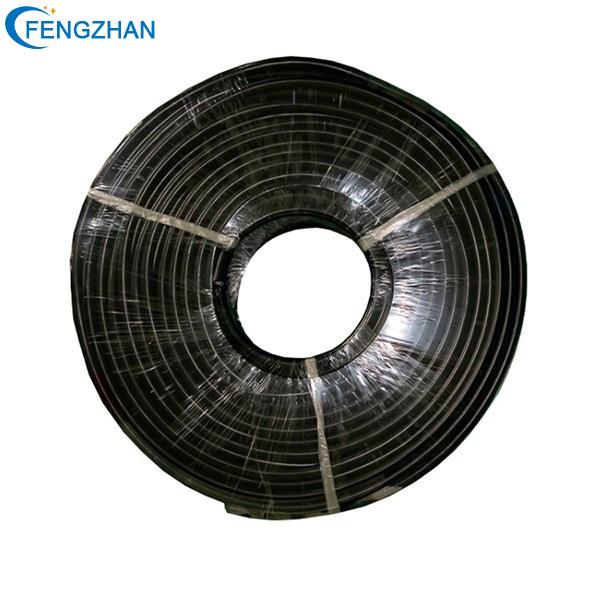

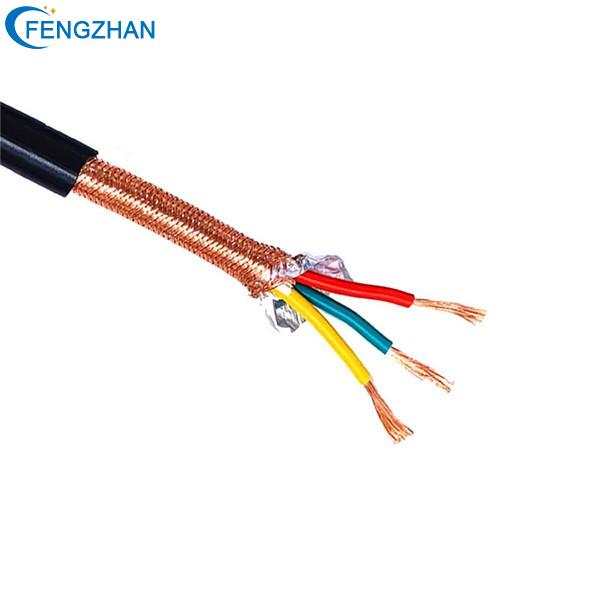

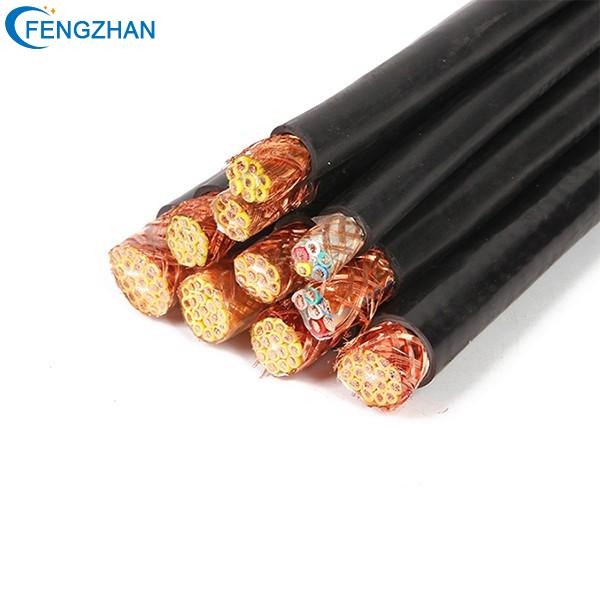

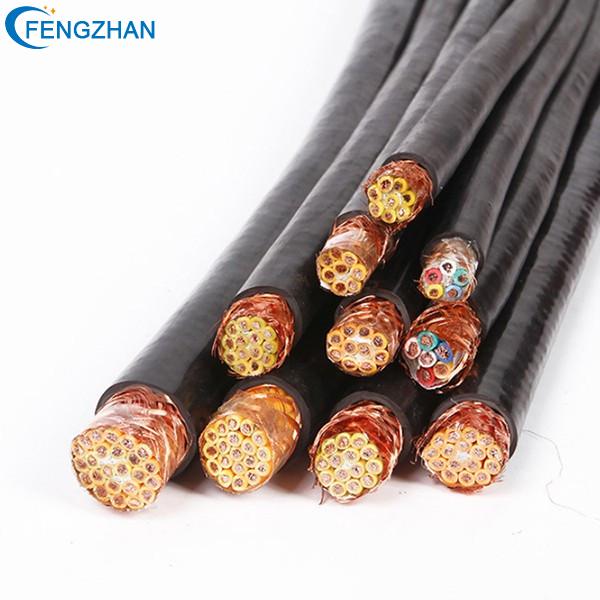

Shielding Cable 300V Multi-Core Cable

Place of Origin: Guangdong, China
Model Number: UL2464 22AWG
Type: insulated
Application: Electrical equipment
Conductor Material: Copper
Conductor Type: Stranded
Insulation Material: PVC
Rated Voltage: 300V

EMAIL

product details.png

It is suitable for shielded cable of electrical appliances, instruments, electronic equipment and automation devices with rated AC voltage of 300 / 300V and below

Shielding Wire.png

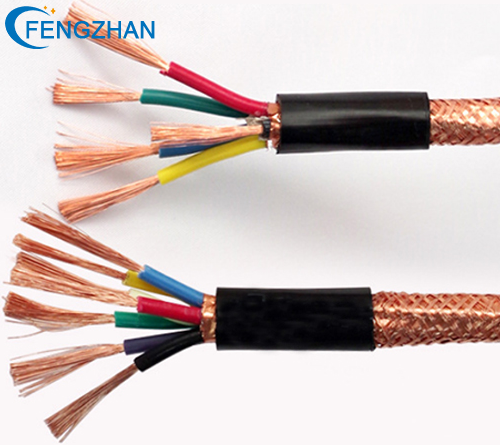

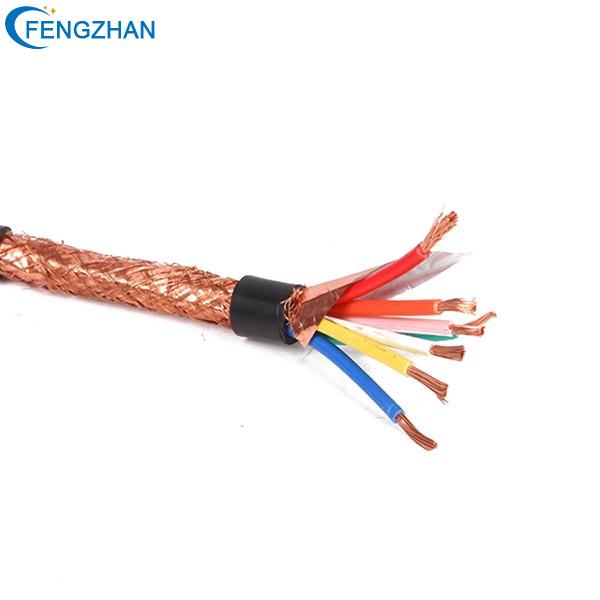

Shielding Wire Details

1. Service characteristic rated voltage: 300 / 300V

Rated temperature: 80 ℃

2. Conductor: stranded bare copper wire (or tinned copper wire)

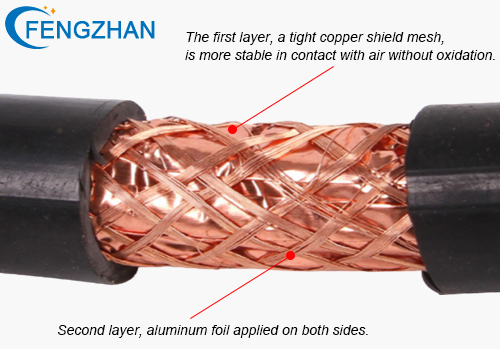

3. Shielding method: braiding or skewing (required by customers)

4. Number of conductor cores: 1-24

5. Insulation: PVC insulation

6. Stranding: the insulated core wire and filling (if any) are wired together.

Shielding Wire.png

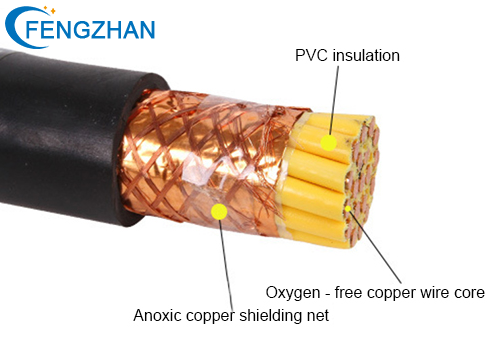

Construction

Conductor: Tinned copper,fine wire conductors

Insulation: Special PVC conre insulation

Assembly: Two or more singles,twisted pairs of groups of twisted singles twisted together of singles or goups of singles may be laid parallel to form flat,oval or round cable.

Covering: optional

Shield: optinal

Jacket: extruded PVC

Covering: Extruded PVC


Technical data

Rated temperature: 80°C

Nominal voltage: 300V

Test voltage: 2000V

Bending radius once approx. 5×coreø multiple approx. 10×coreø


Properties

Conditionally resistant to oils,solvents,acids,lyes

PVC self-extinguishing and flame retardant,test method to UL VW-1/CSA FT1

The materials used in manufacture are cadmium-free and contain no silicone and free from substances harmful to the wetting properties of lacquers.

Shielding Wire.png

Shielding Wire Application

Suitable for use as a command,measuring and control cable in tool making machinery conveyor system and production lines,in industrial plants and in air conditioning as well as in the steel producing industries.
