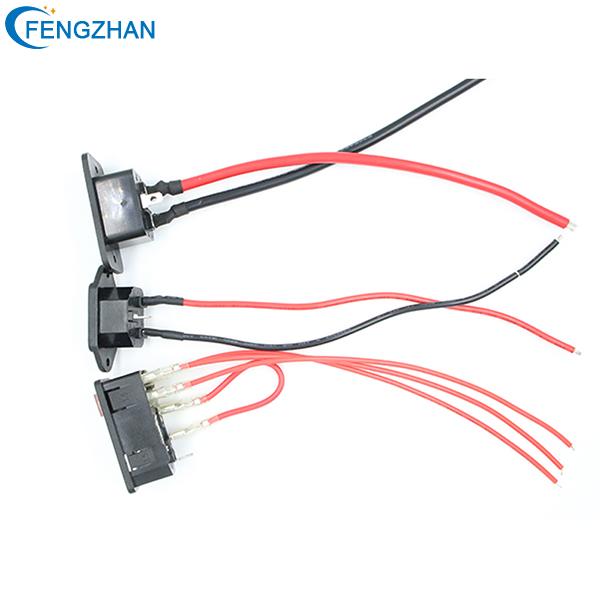

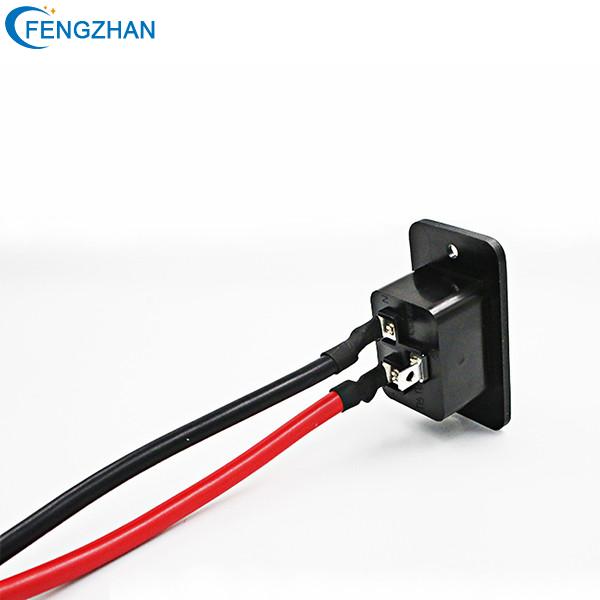

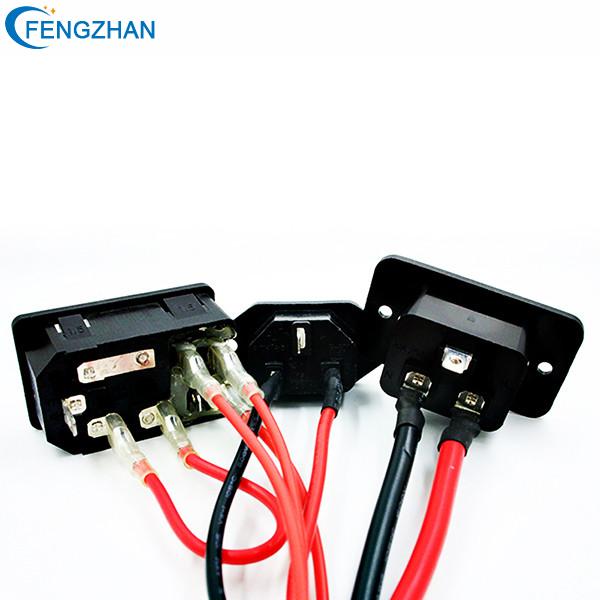

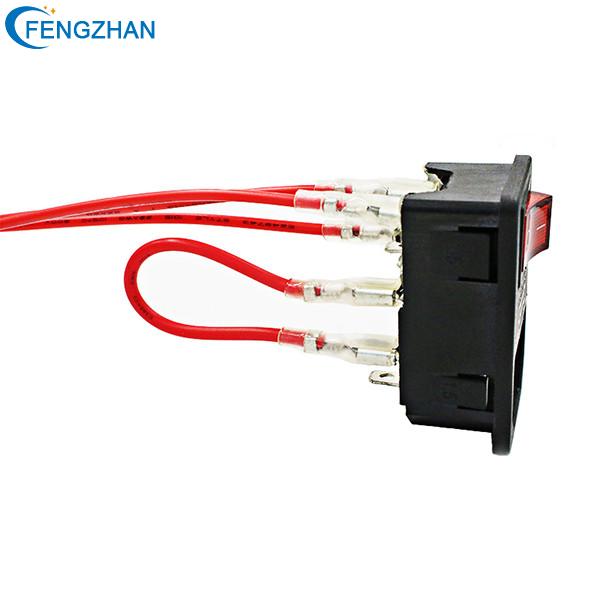

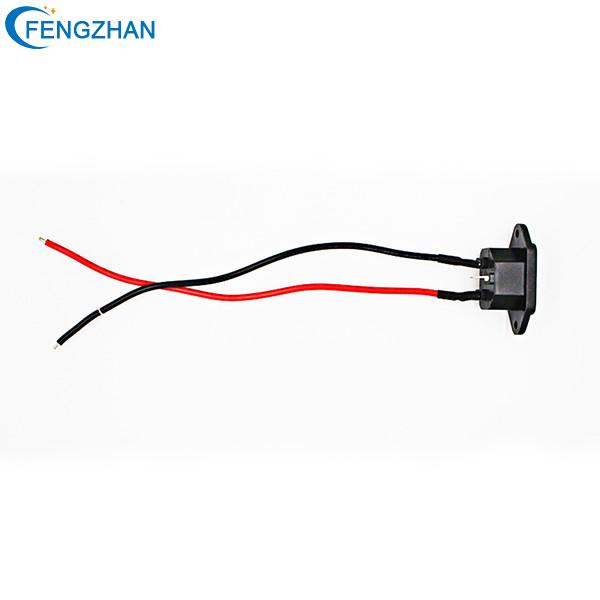

Switching Power Wiring Harness

Switching Power Wiring Harness wiring method:
1. Pass the neutral wire directly through the lamp head, and then place the wire on the center point of the switch.
2. Connect the two sides of the electrical switch with other typical ones.
3. When going out, one is connected to the center point of 220v, and the other is connected to the switch.
4. Finally, check whether the switch can work normally after the power is turned on.

Switching Power Wiring Harness wiring method:
We first determine the center point of the double-control switch, and the symmetrical point is called left and right.
Connect the left and right switches in parallel with two wires, one switch is connected to the live wire, and the other switch is directly connected to the control wire.

Use one wire to directly connect the center point, the other end to the electrical appliance, and check whether the live wire and the neutral wire are properly connected between the switches. It is best to test whether the circuit is correct, and then check whether the lamp can achieve dual control. This control method has potential safety hazards, and it is easy to trip, and if a single trip occurs, the entire line will have problems.
